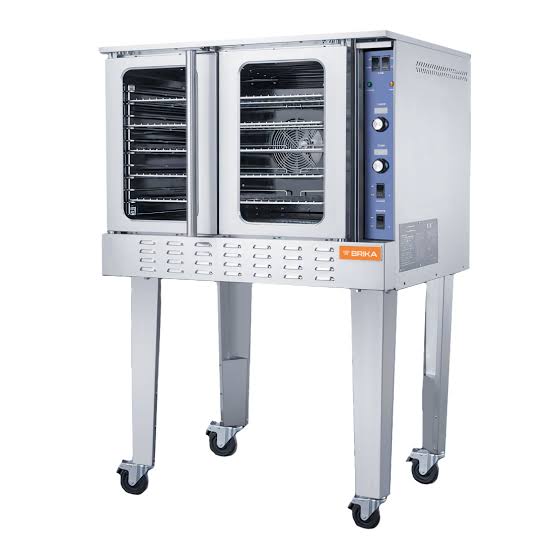

Brika - 38" Natural Gas Convection Oven, Single Deck, 5 Full-Size Pans, 54,000 BTU - BCOS-1-NG
Model Number: DIST-BCOS-1-NG
Description
Five full-size sheet pans at a time, moved by a two-speed convection fan, out of a single-deck cabinet 38.00" wide. Three burners at 18,000 BTU/hr each supply 54,000 BTU/hr total. Bakeries, restaurant kitchens, institutional lines and small food processing operations use this size as their first real oven.
Shelf positions number ten, so the five pans can be spaced tight for cookies or spread out for tall product, and the nickel-plated chrome racks slide on guides that adjust without tools. Electronic spark ignition with an automatic pilot and safety shut-off starts the burners, and the fan runs a cool-down mode when the shift is done. Independent double-pane glass doors let a cook check colour without dropping cavity temperature, and the thermostat holds anywhere from 175°F to 500°F. The cabinet measures 38.00" W x 39.75" D x 61.75" H at 195 lb net; leave 17.00" to combustibles and 4.00" at the rear.
Key Features:
- Five full-size sheet pans per load with ten adjustable nickel-plated chrome shelf positions
- 54,000 BTU/hr from three 18,000 BTU/hr burners, with a 175°F to 500°F working range
- Even bake and a controlled shutdown: two-speed convection fan with adjustable cool-down mode
- Reliable light-off every time: electronic spark ignition, automatic pilot and safety shut-off
- Check product without losing heat through independent double-pane glass doors
- 110V / 8.07 A controls with a 0.75" NPT rear gas connection at 4.00" WC natural gas; CSA Sanitation certified, one-year warranty
Specifications
Dimensions
Width
38"
Depth
39.75"
Height
61.75"
Shipping Width
42.70"
Shipping Depth
45.60"
Shipping Height
44"
Details
Model
BCOS-1-NG
Power Type
Natural Gas
Heating Source
Gas
Alternate Gas Configuration
Also available as LP / Propane (BCOS-1-LPG)
Total BTU
54,000 BTU/Hr
Number of Burners
3
Burner BTU
18,000 BTU/Hr per burner
Gas Inlet Size
3/4" NPT rear gas connection
Natural Gas Supply Pressure
4" WC
Propane Supply Pressure
10" WC
Voltage
110V
Amps
8.07 Amps
Capacity
5 trays / full-size sheet pans
Shelves
10 adjustable shelves
Number of Decks
1 (single deck)
Temperature Range
175°F to 500°F
Ignition
Electronic spark ignition with automatic pilot system and safety shut-off
Fan
Two-speed convection fan with adjustable cool-down mode
Doors
Independent double-pane glass doors
Construction Material
Stainless steel exterior; double-pane glass doors; nickel-plated chrome shelves
Clearances
17" from combustibles; 4" at the rear
Product Condition
New
Net Weight
195 lb
Shipping Weight
285 lb
Warranty / Certifications
Warranty
1 Year
Certification
CSA Sanitation
