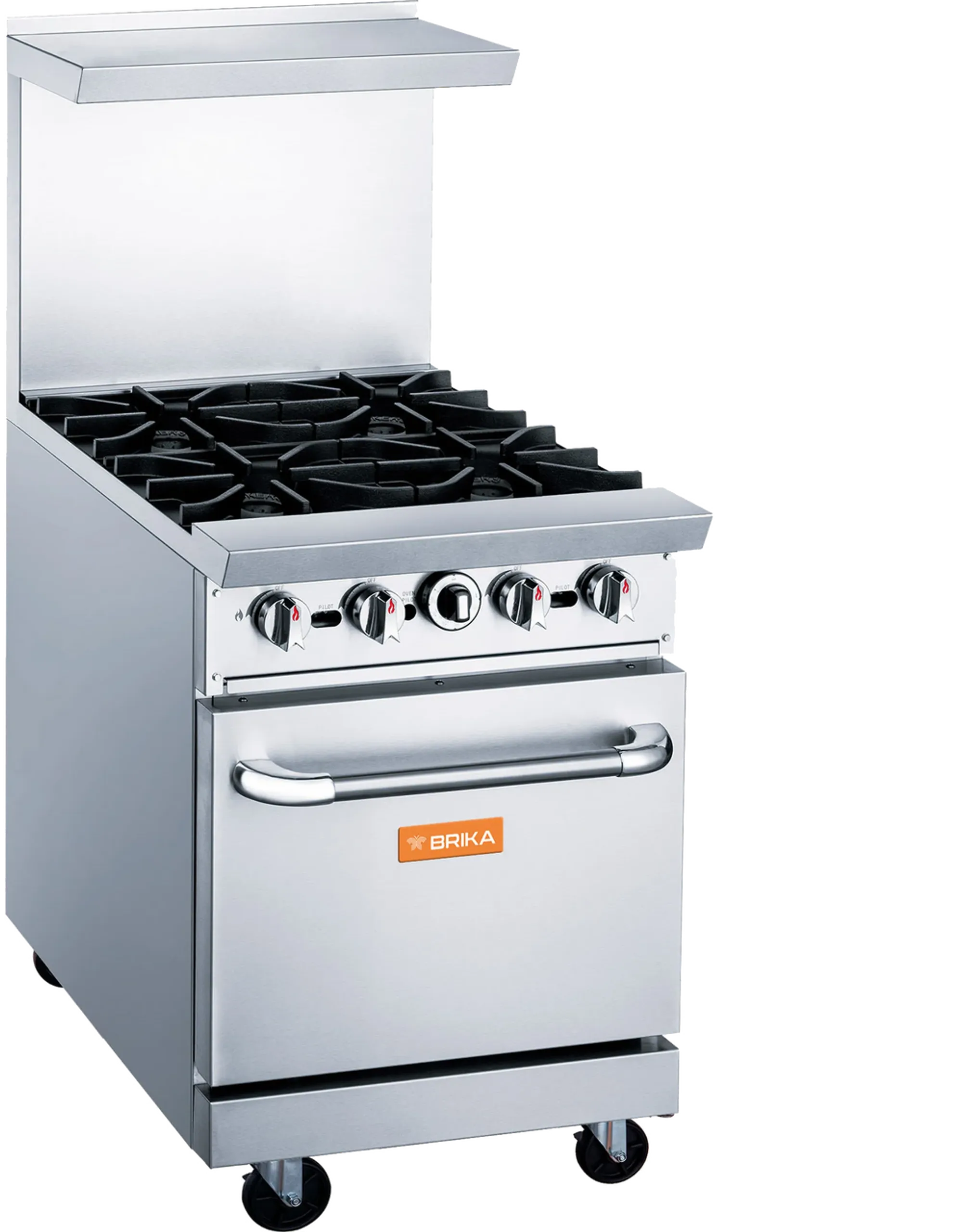

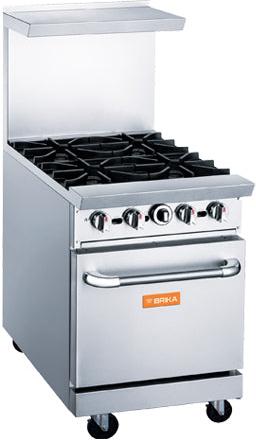

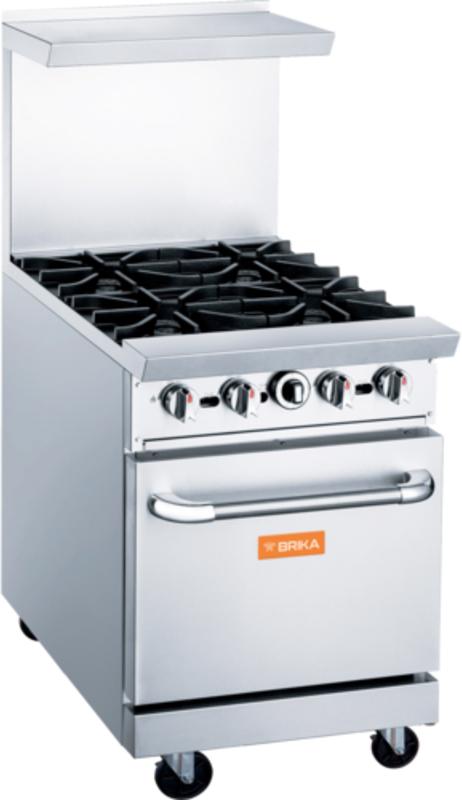

Brika - 24" Natural Gas Restaurant Range, 4 Open Burners with Standard Oven, 162,000 BTU - BGR-4B
Model Number: DIST-BGR-4B
Description
A full restaurant range in 24.00" of line space: four open top burners across a 24.00" x 24.00" cooktop, with one standard oven directly underneath. Each burner is rated 33,000 BTU/hr and the oven burner adds another 30,000, for 162,000 BTU/hr total on natural gas. Small restaurants, cafes and cafeteria lines get sauté capacity and roasting capacity out of a two-foot section of wall.
Two-ring burner heads spread the flame so a small saucepan and a wide rondeau both sit in even heat, and the removable 12.00" x 12.00" cast iron grates lift straight out at close. Underneath, the enamel-lined oven cavity measures 26.00" x 26.00" x 15.00" and takes bun pans widthwise or lengthwise on two chrome racks with four guide positions, running anywhere from 175°F to 500°F. Stainless steel covers the front, sides, kick plate, back guard and over shelf, and a full-width stainless crumb tray slides out from under the burner box. At 268 lb it sits solid once it is levelled.
Key Features:
- Full range capability in a narrow footprint: 24.00" W x 31.50" D x 56.00" H overall with a 24.00" x 24.00" cooking surface
- Enough top heat for stockpots and hard sear work: four open burners at 33,000 BTU/hr each
- Roasting and baking below the line: 30,000 BTU/hr oven burner with a 175°F to 500°F thermostat
- Pan flexibility inside a 26.00" x 26.00" x 15.00" enamel cavity: two chrome racks on 4-position guides, bun pans either orientation
- Faster end-of-shift cleaning: removable 12.00" x 12.00" cast iron grates and a full-width stainless steel crumb tray
- Natural gas or propane through a 0.75" NPT inlet; CSA Sanitation certified, one-year warranty
Specifications
Dimensions
Width
24.00"
Depth
31.50"
Height
56.00"
Cooking Surface Width
24.00"
Cooking Surface Depth
24.00"
Oven Interior Width
26.00"
Oven Interior Depth
26.00"
Oven Interior Height
15.00"
Top Grate Size
12.00" x 12.00"
Shipping Box Width
26.00"
Shipping Box Depth
36.80"
Shipping Box Height
38.20"
Details
Model
BGR-4B
Power Type
Natural Gas or Propane
Heating Source
Gas
Type
Restaurant Range with Standard Oven
Total BTU
162,000 BTU/Hr
BTU per Open Burner
33,000 BTU/Hr
Oven BTU
30,000 BTU/Hr
Number of Burners
4
Number of Ovens
1
Top Grates
Heavy duty 12" x 12" removable cast iron top grates
Gas Inlet Size
3/4" NPT
Gas Pressure
Natural Gas 5" W.C. / Propane 10" W.C.
Oven Nozzle
Natural Gas 40# / Propane 52#
Burner Nozzle
Natural Gas 41# / Propane 52#
Construction Material
Stainless steel exterior including front, sides, kick plate, back guard and over shelf
Burner Tubing
Stainless steel tubing for burners and pilot
Oven Interior
Enamel interior oven with full-width stainless steel crumb tray
Oven Temperature Range
175°F to 500°F
Oven Racks
Two (2) chrome oven racks per oven; 4-position oven rack guides
Oven Pan Capacity
Fits bun pans either widthwise or lengthwise
Weight
268 Lbs
Product Condition
New
Warranty / Certifications
Warranty
1 Year
Certification
CSA Sanitation
