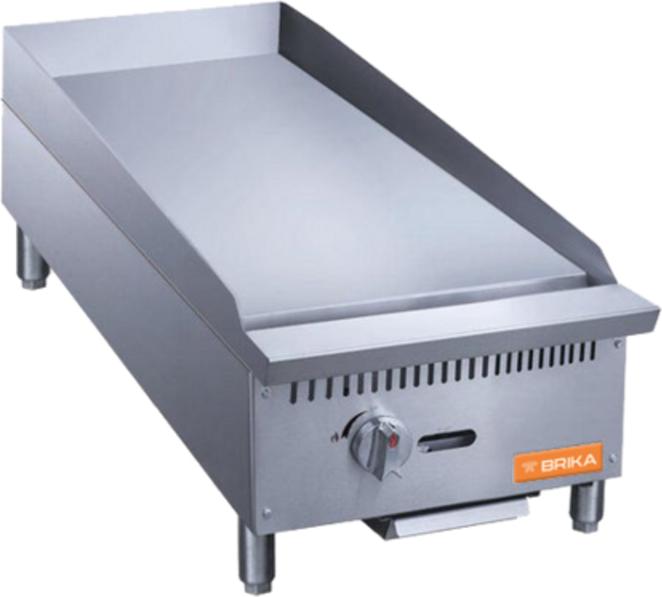

Brika - 12" Natural Gas Manual Griddle, 0.75" Steel Plate, 30,000 BTU - BMG-12
Model Number: DIST-BMG-12
Description
At 12" wide, this manual gas griddle is the smallest flat top in the BMG line, sized for a food truck or a concession stand with one spare foot of counter. A single 30,000 BTU/Hr burner heats a 0.75" thick polished steel plate, and the plate thickness is the point: it stores heat and gives it back when cold product lands. The cooking surface measures 12.00" x 20.50".
Depth is 30.00" and height 15.25", which keeps the unit inside a standard counter run. A stainless steel standby pilot lights the burner right away, and one manual control sets the temperature. The cabinet is stainless steel inside and out, with a full-length drip pan that pulls out for cleaning and adjustable legs on non-skid feet. Gas connects at 0.75" NPT, shipping on natural gas at 4" WC with the propane conversion kit in the carton.
Key Features:
- Quick heat recovery from a 0.75" thick polished steel plate over a 30,000 BTU/Hr burner
- 12.00" x 20.50" cooking surface inside a 12.00" x 30.00" x 15.25" footprint
- Stainless steel standby pilot for immediate lighting, with a single manual control
- Grease clears into a full-length removable drip pan; stainless steel inside and out
- Ships for natural gas (4" WC, 34# nozzle) with a propane kit (10" WC, 49# nozzle) included
- 124 lbs net, CSA Sanitation certified, one year warranty
Specifications
Dimensions
Width
12.00"
Depth
30.00"
Height
15.25"
Cooking Surface Width
12.00"
Cooking Surface Depth
20.50"
Griddle Plate Thickness
0.75"
Shipping Box Width
14.13"
Shipping Box Depth
32.63"
Shipping Box Height
18.88"
Details
Model
BMG-12
Power Type
Natural Gas or Propane
Heating Source
Gas
Total BTU
30,000 BTU/Hr
BTU per Burner
30,000 BTU/Hr
Number of Burners
1
Number of Controls
1
Controls
Independent manual control per 12" section
Ignition
Stainless steel standby pilot for instant ignition
Griddle Plate
Heavy-duty 3/4" thick polished steel plate
Gas Inlet Size
3/4" NPT
Gas Pressure
Natural Gas 4" W.C. / Propane 10" W.C.
Gas Nozzle
Natural Gas 34# / Propane 49#
Gas Conversion
Ships configured for natural gas; propane conversion kit included
Construction Material
Stainless steel exterior and interior
Drip Pan
Full-length seamless drip pan, removable
Legs
Adjustable stainless steel legs with non-skid feet
Weight
124 Lbs
Product Condition
New
Shipping Weight
139 Lbs
Country of Origin
China
Warranty / Certifications
Warranty
1 Year
Certification
CSA Sanitation
