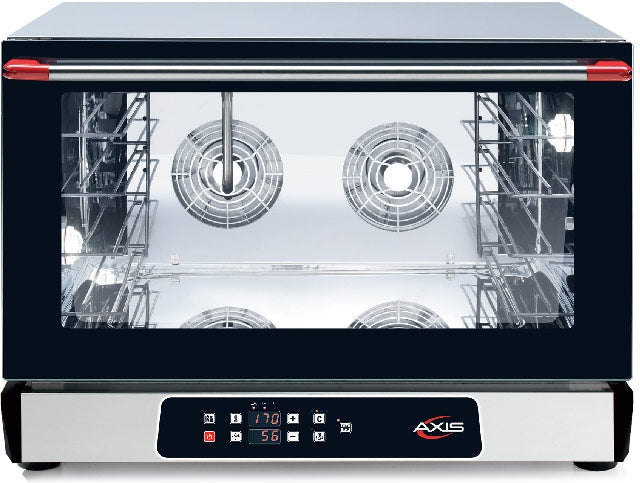

Axis - 4 Shelf Full Size Commercial Convection Oven Digital With Humidity Controls - AX-824RHD
Model Number: MVP-AX-824RHD
Description
This Axis Convection Oven is a powerful and reliable appliance designed for commercial kitchens. With its full-size dimensions of 31-1/2" width, 31-5/8" depth, and 23-15/16" height, this oven offers a spacious interior with a capacity of 3.85 cubic feet, allowing you to cook large quantities of food with ease.
Equipped with digital/programmable controls, this convection oven offers precise and convenient operation. The temperature range of 86-500°F provides flexibility for a wide range of cooking needs, from delicate baking to high-temperature roasting. The humidity inverter system helps maintain the ideal moisture levels inside the oven, ensuring your dishes come out perfectly cooked and full of flavor.
With a capacity to hold four full-size pans, this oven provides ample space for cooking multiple items simultaneously. The inclusion of two fans ensures even heat distribution throughout the oven cavity, resulting in consistent and uniform cooking results. The timer function, ranging from 0 to 120 minutes, allows you to set the desired cooking time and focus on other tasks while the oven operates.
The Axis Convection Oven operates at 5700 watts and requires 24 amps of power at 208-240 volts in a single-phase configuration. It has been certified by ETL for sanitation standards, ensuring it meets rigorous hygiene requirements. The cETLus certification further confirms its compliance with safety and performance standards in North America. Overall, this Axis Convection Oven is a versatile and efficient choice for commercial kitchens, offering digital controls, reliable performance, and excellent cooking capabilities.
Features
- Advanced airflow design
- Automatic high speed reversing fan
- Digital programmable controls / 99 programs / automatic pre-heating / 3 cooking cycles for each program
- Interior halogen light
- Includes electro valve for direct water connection
- Heavy-duty stainless-steel body construction
- Micro safety switch shuts oven off when door is open
- “Cold Door” design with double pane glass
- Reinforced door hinges
- Oven door can support weight limit of 80 lbs.
- Oven cavity is insulated with ultra-high. temperature fiberglass insulation
- 4 Stainless steel wire shelves
- Ovens can be stacked (kit required)
- Warranty: 2 years parts & 1 year labor exclusive of
lights, gaskets and glass
Specifications
Dimensions
Height
24"
Width
31.5"
Depth
31.5"
Details
Time, Temperature, Humidity, 3 cooking cycles for each program, automatic pre-heating
Time, Temperature, Humidity, 3 cooking cycles for each program, automatic pre-heating
Load capacity
4 shelves for half size sheet pans
High speed reversing Fan
2 (3200 rpm)
Space between shelves
3.14" (80 mm)
Temperature
86° - 500°F
Hertz
60 Hz
Phase
Single Phase
Equipped With
16 hour timer - Signal at end of cycle
Cavity size (inches)
29.33"x19.29"x13.58" (WxDxH)
Shipping dimensions (inches)
35.44" x 31.10" x 29.53" (WxDxH)
Net/Ship weight
126 lb / 154 lb
Warranty / Certifications
Warranty
2 Years
