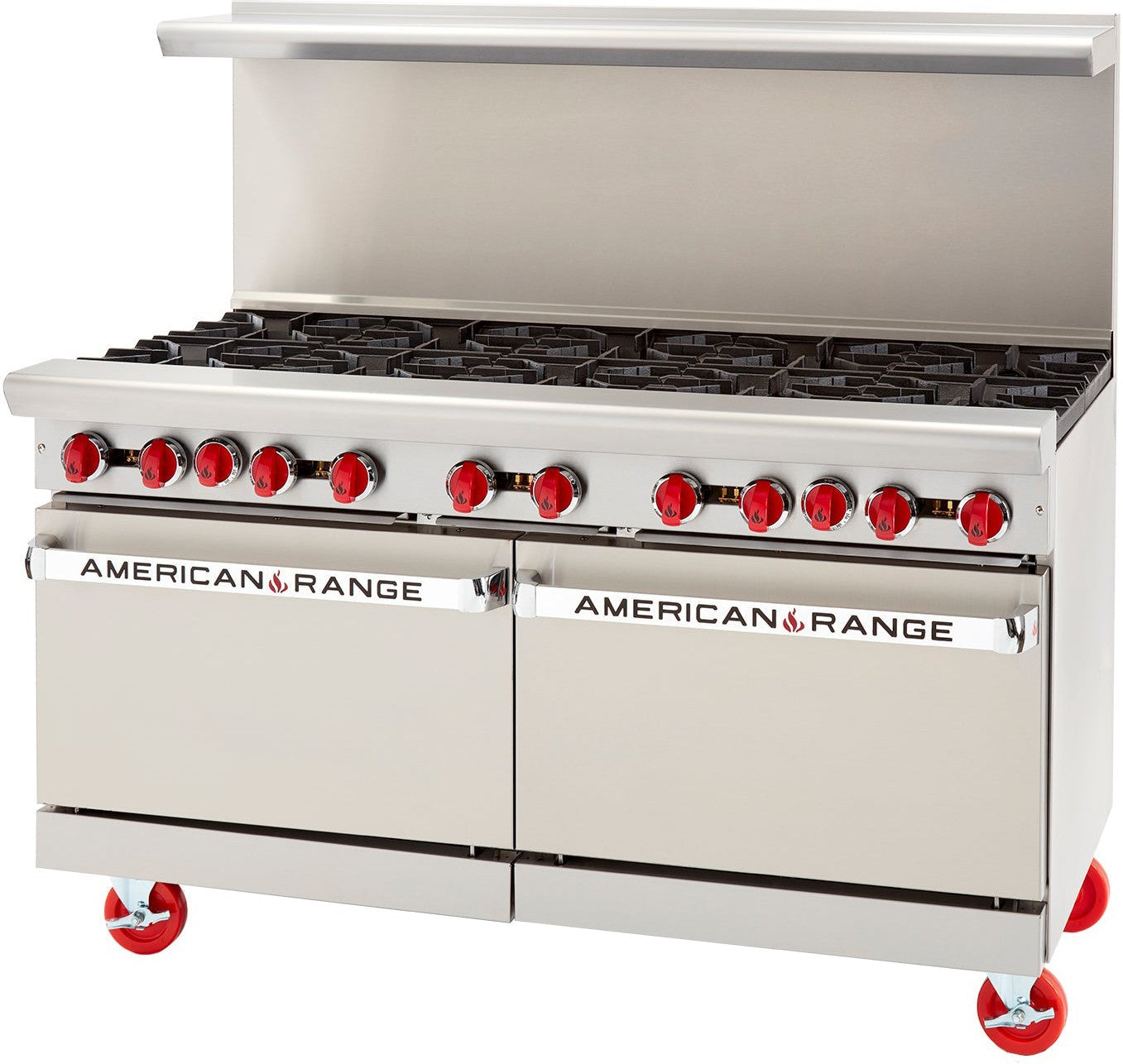

American Range - 60" Restaurant Range 10 Burners With 26.5" 2 Space Standard Oven, Stainless Steel - AR-10
Model Number: GBS-AR-10
Description

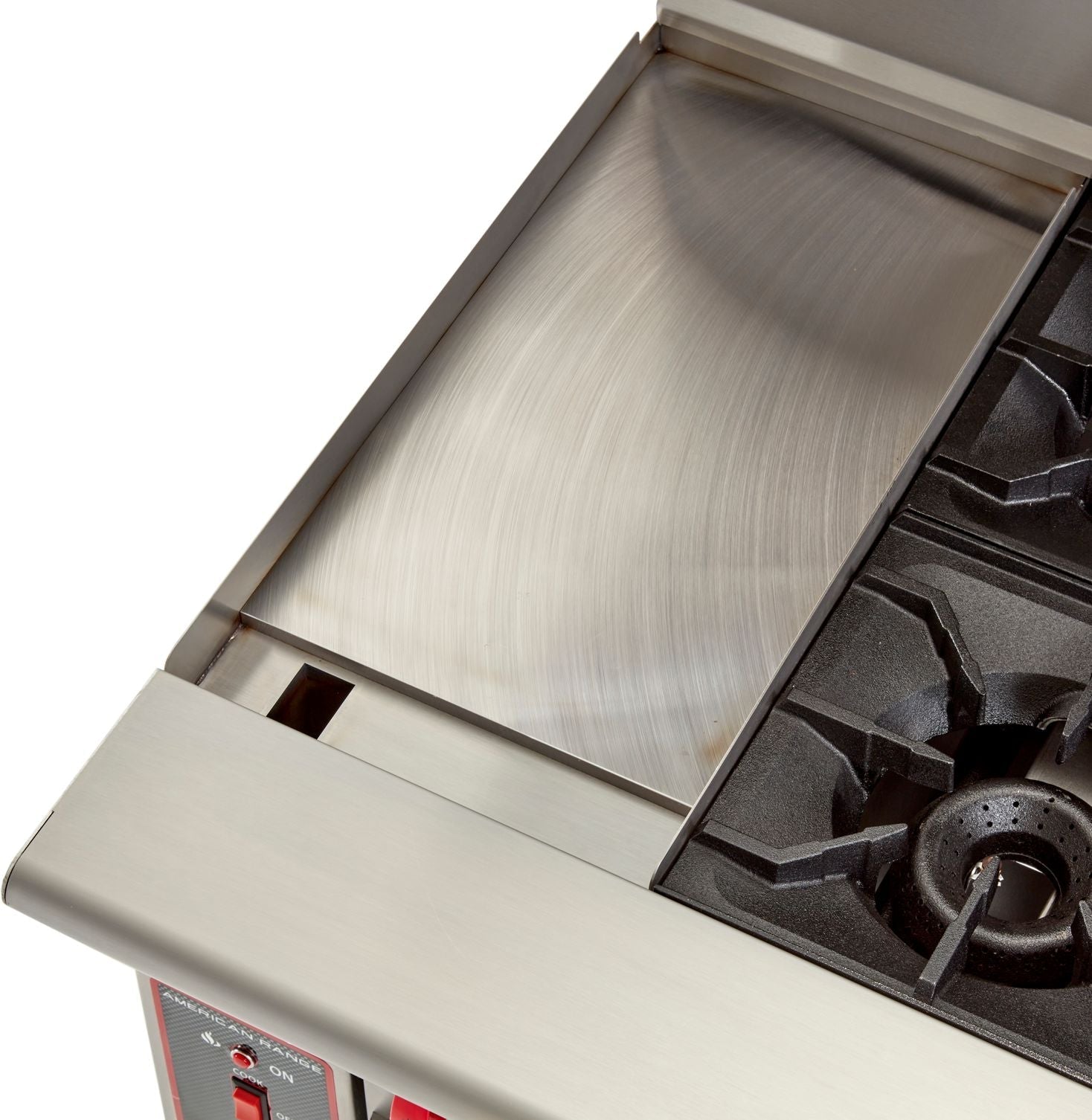

American Range, restaurant range size 60" x 32-1/2" x 56" Stainless steel front, sides, backriser, shelf and 6" adjustable legs. Removable full width drip pan. Choose 32,000 BTU/hr. open burners with lift-o burner heads or 20,000 BTU/hr. 12" section griddle or a combo burner griddle. Heavy-duty cast iron grates, 12" x 12". Burner knobs are cool to the touch, high temperature material. One oven: 35,000 BTU/hr. standard oven, 30,000 BTU/hr. for convection or innovection with porcelain interior and inside door panel, oven interior measures 26- 1/2"W x 22-1/2"D x 13-1/2"H. Oven thermostat adjusts from 250°F to 500°F. All ovens supplied with two racks. Oven door with a spring assisted, counterweight mechanism requiring no adjustment. Rear gas connection and pressure regulator.
Key Features:-
STANDARD FEATURES
• Commercial gas range 60" wide and 32 1/2" depth.
• Cooking height 36".
• Stainless steel sides, front and 6" deep front landing ledge.
• Adjustable steel legs (casters optional).
• Choose: 6" high stainless-steel stub back, high riser or
high riser with shelf at no charge.
• Two year limited warranty, parts and labor.
• Base options: Standard, convection, innovection or storage base

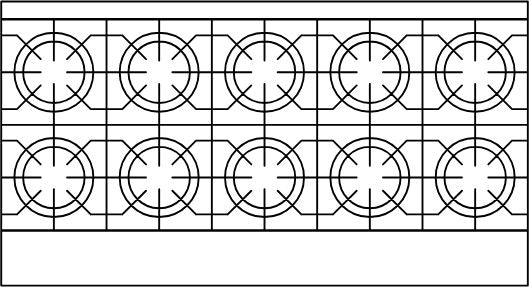

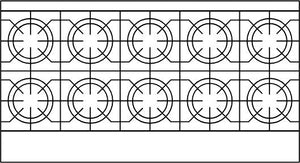

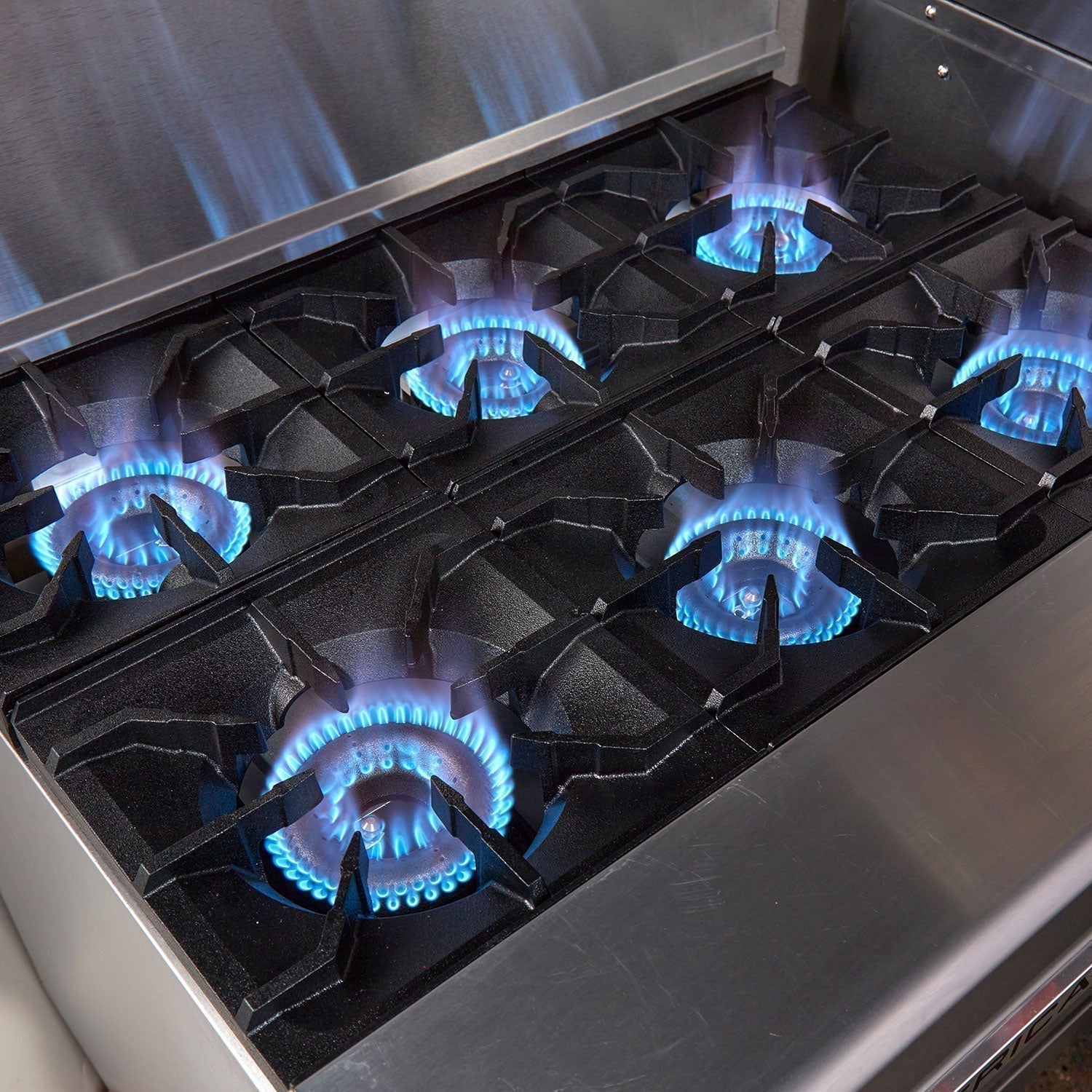

OPEN BURNERS

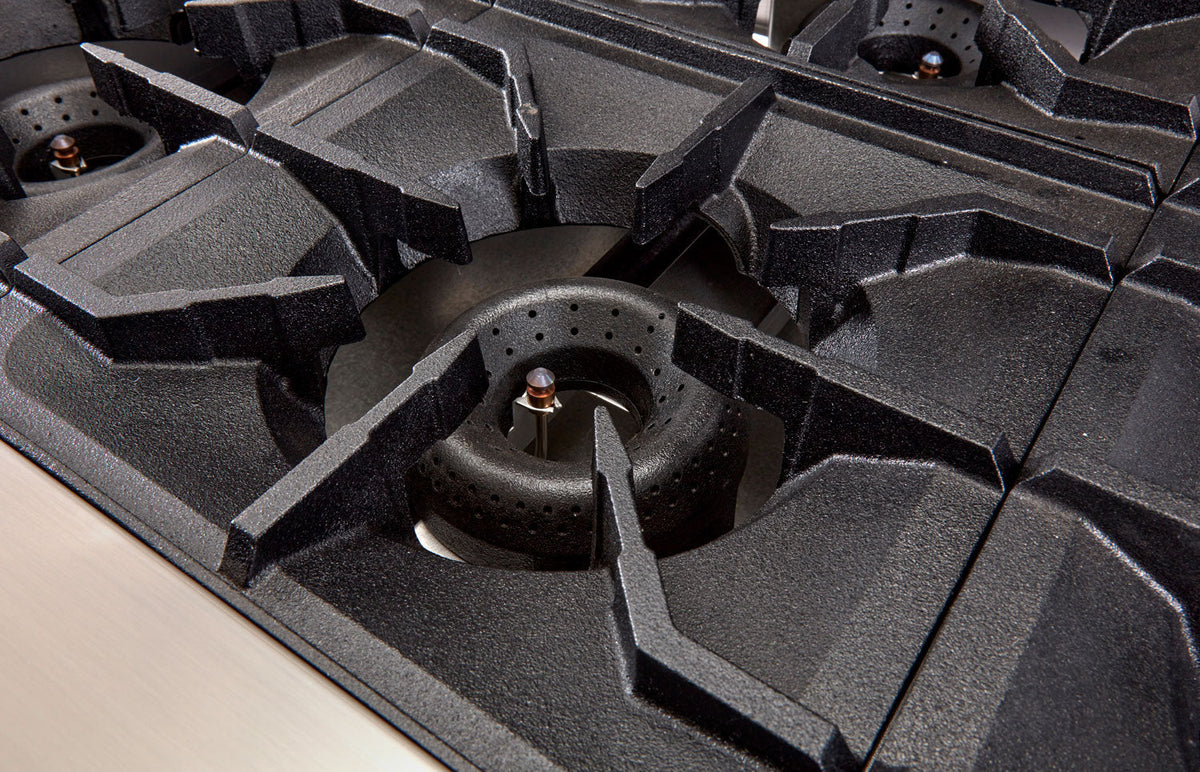

• 12" x 12" cast-iron top grates.

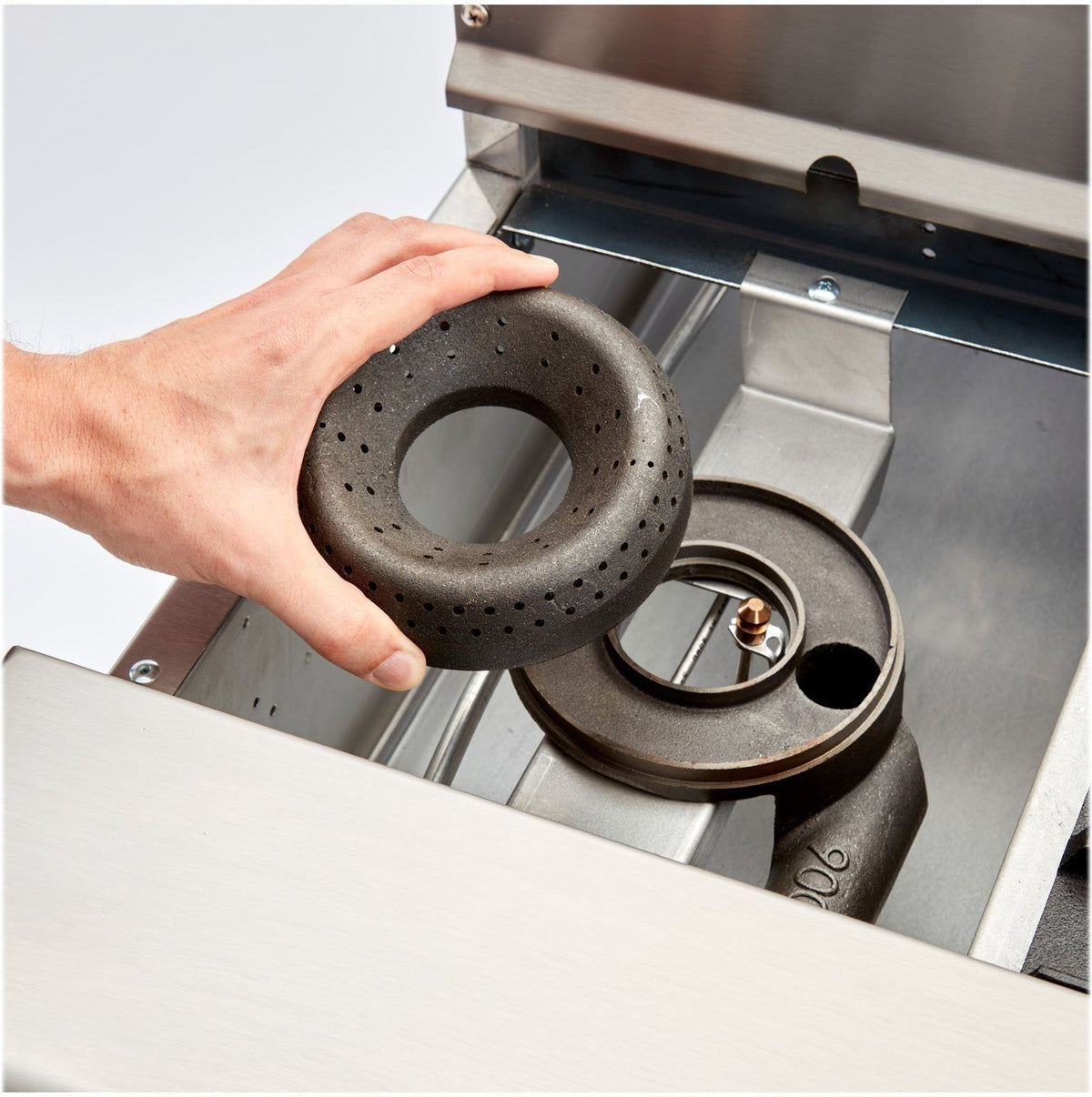

• 32,000 BTU/hr lift-off open burners.
• Removable full width drip pan under burner.

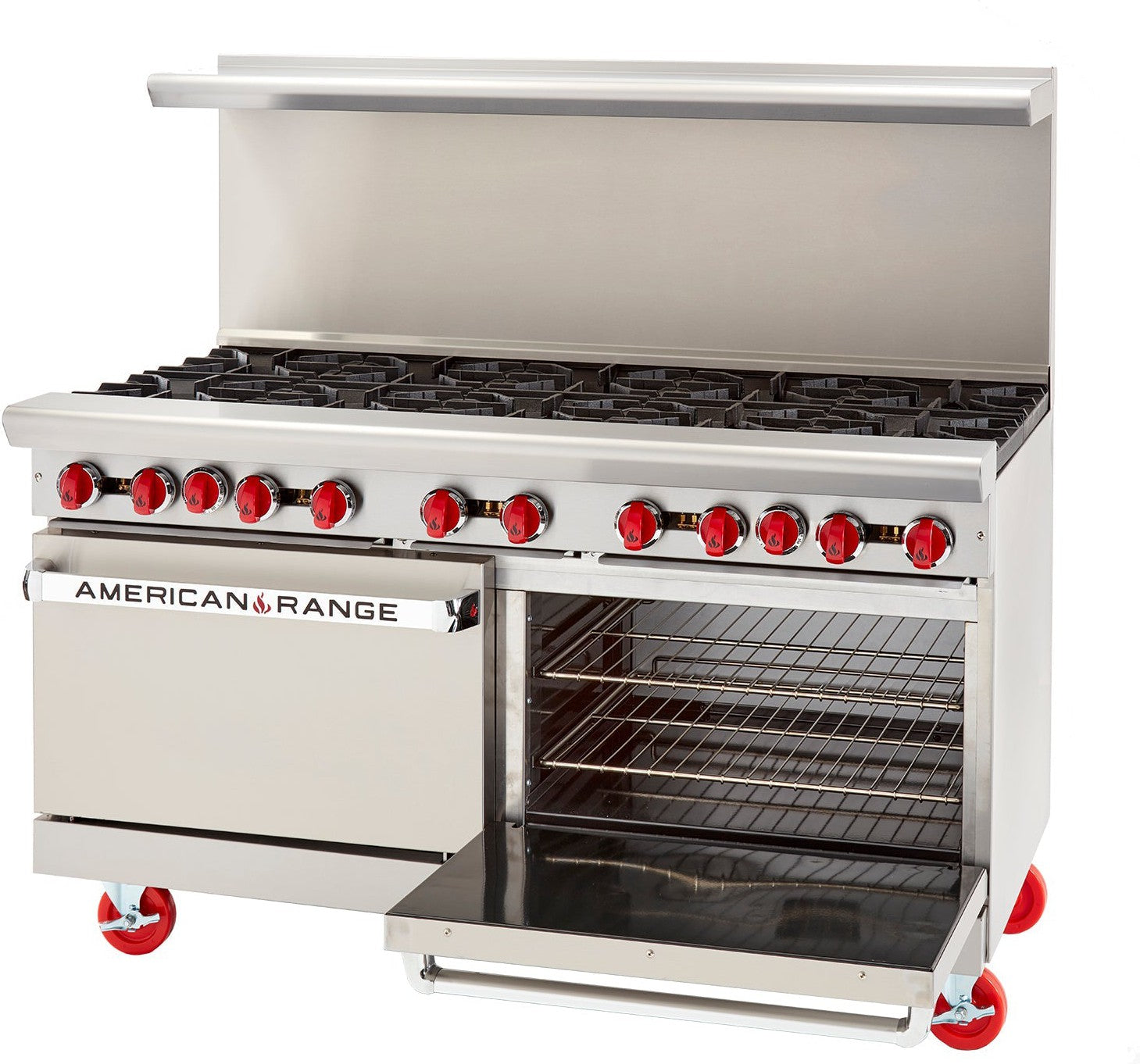

STANDARD OVEN
• Steel oven burner rated at 35,000 BTU/hr.
• Oven dimensions: 26 1/2"W x 22 1/2"D x 13 1/2"H.
• Thermostat ranging from 250°F to 500°F (121°C to 260°C).
• Oven Door: Spring assisted, counterweight door.
• Two chrome plated oven racks (additional racks optional).
• Two Fixed rack positions.
• Porcelain enamel oven interior for easy cleaning.
• 100% safety gas shut off.
Specifications
Dimensions
Width
60"
Depth
32.5"
Height
36"
Oven Width
26.5"
Oven Depth
22.5"
Height
13.5"
Details
Weight
705 Ib
Material
Stainless Steel
Color
Stainless Steel
BTU
390,000
KW
(114)
Burners
10
Cast-Iron Top Grates
12" x 12"
Lift-off Open Burners BTU/hr
32,000
Removable Drip Pan Under Burner
Yes
Steel Oven Burner Rated BTU/hr
35,000
Thermostat Range
250°F to 500°F (121°C to 260°C)
Two Chrome Plated Oven Racks
Yes
Two Fixed Rack Positions
Yes
100% Safety Gas Shut Off
Yes
Warranty / Certifications
Warranty
Limited 2 Year Warranty
