American Range - 48" Stainless Steel Restaurant Range 36" Griddles, 2 Burners, and 20" 2 Space Storage Bases - AR-36G-2B-DSB
Model Number: GBS-AR-36G-2B-DSB
Description
American Range, restaurant range size 48" x 32-1/2" x 56" Stainless steel front, sides, backriser, shelf and 6" adjustable legs. Removable full width drip pan. Choose 32,000 BTU/hr. open burners with lift-off burner heads or 20,000 BTU/12" section griddle or a combo burner griddle. Heavy-duty cast iron grates, 12" x 12". Burner knobs are cool to the touch, high temperature material. Two ovens: 27,000 BTU/hr. standard oven, with porcelain interior and inside door panel, oven interior measures 20"W x 26-1/2"D x 13-1/2"H. Oven thermostat adjusts from 250°F to 500°F. Ovens supplied with two racks. Oven door with a spring assisted, counterweight mechanism requiring no adjustment. Rear gas connection and pressure regulator.
Key Features:-
STANDARD FEATURES
• Commercial gas range 48" wide and 32 1/2" depth.
• Cooking height 36".
• Stainless steel sides, front and 6" deep front landing ledge.
• Adjustable steel legs (casters optional).
• Choose: 6" high stainless-steel stub back, high riser or
high riser with shelf at no charge.
• Two year limited warranty, parts and labor.
• Base options are standard oven or storage base.
GRIDDLES
• 1" thick steel griddle plate.
• 3" wide grease collector.
• One burner every 12", rated at 20,000 BTU/hr.
• Stainless steel pilot for each burner for automatic ignition.
• Manual control valve for each burner. (Thermostatic control optional).
OPEN BURNERS

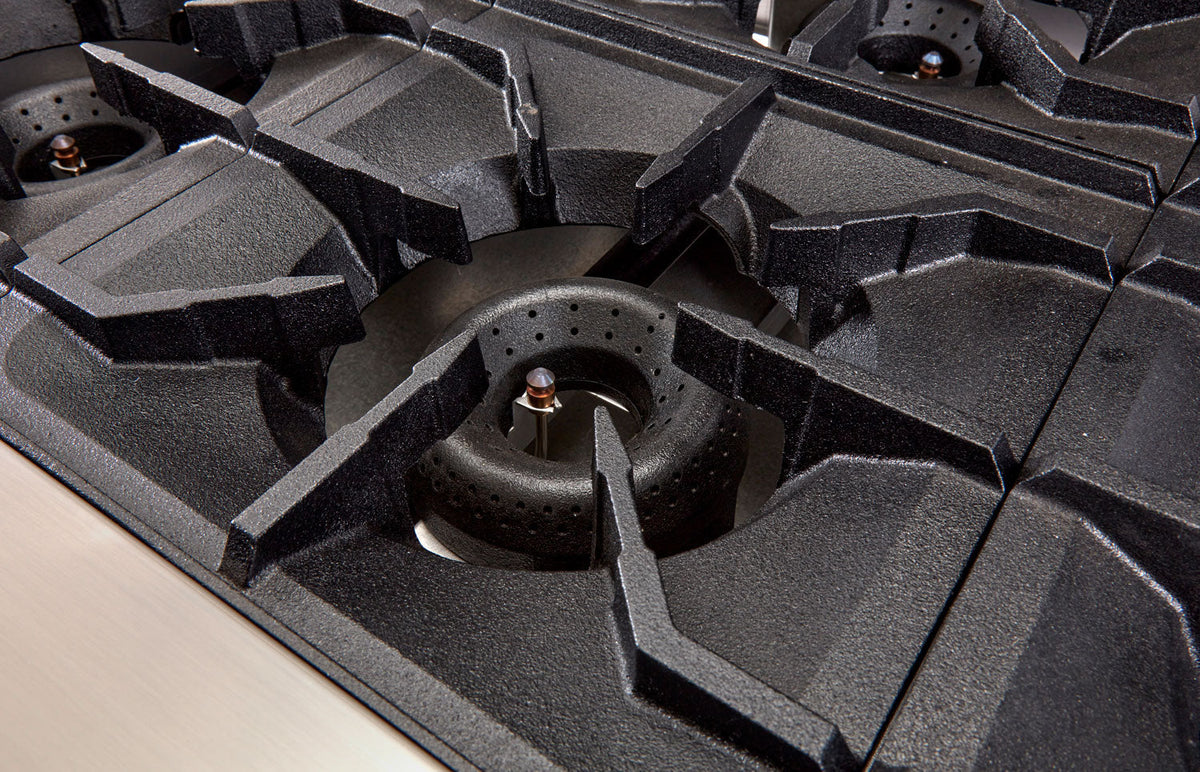

• 12" x 12" cast-iron top grates.

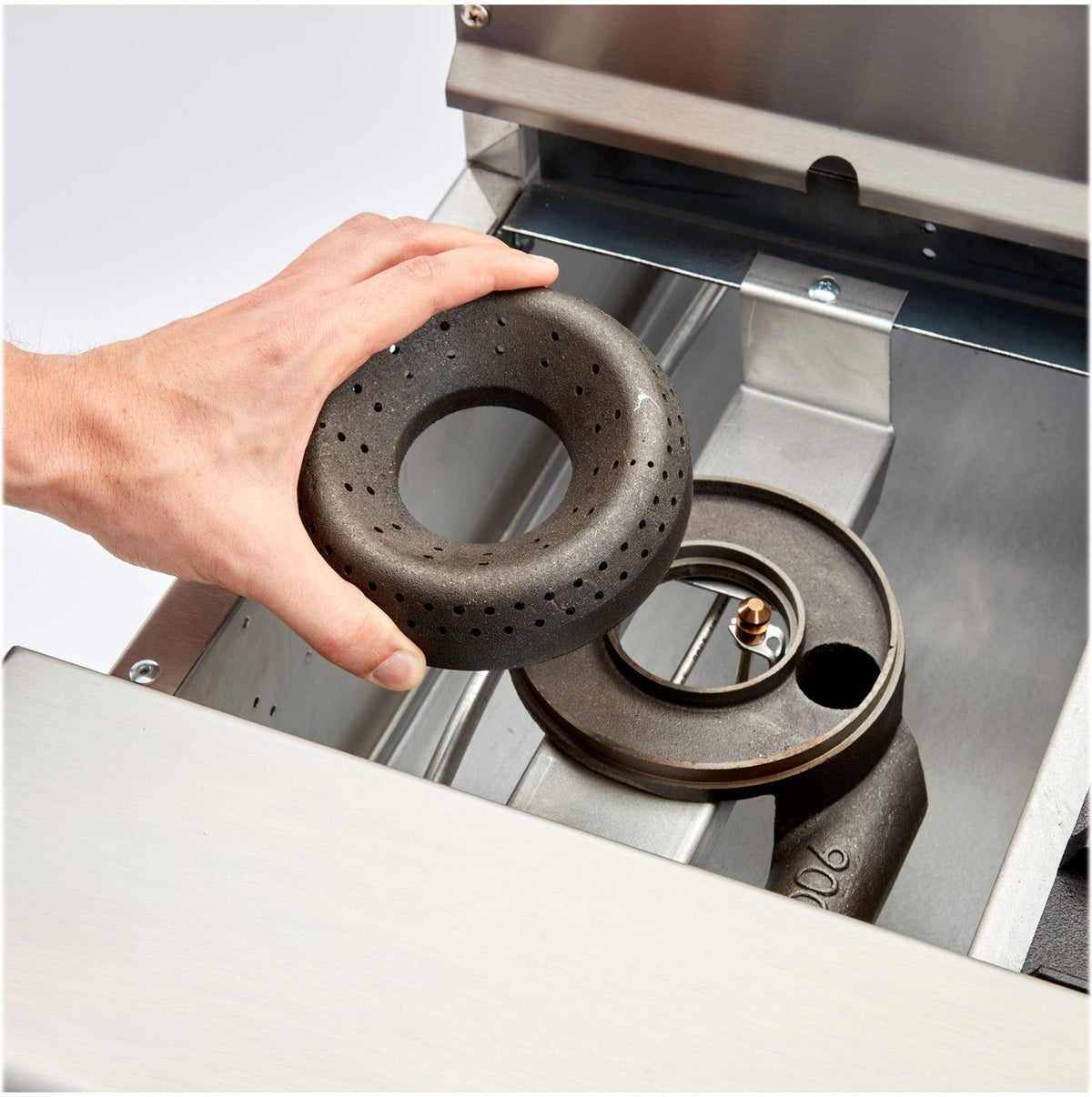

• 32,000 BTU/hr lift-off open burners.
• Removable full width drip pan under burner
High Performance
Designed for heavy-duty cooking in commercial kitchens, providing consistent and powerful heat output.
Durability
Constructed with robust materials such as stainless steel for longevity and easy cleaning.
MULTIPLE BURNERS
Equipped with several high-BTU burners to handle multiple cooking tasks simultaneously.
Specifications
Dimensions
Width
48"
Depth
32.5"
Height
36"
Griddle Size
36"
Details
Weight
505 Ib
Material
Stainless Steel
Color
Stainless Steel
BTU
124,000
KW
(37)
Burners
2
Cast-Iron Top Grates
12" x 12"
Lift-Off Open Burners BTU/hr
32,000
Removable Drip Pan Under Burner
Yes
Steel Griddle Plate Thickness
1"
Wide Grease Collector
3"
One Burner Rated BTU/hr.
20,000
Automatic Ignition
Yes
Warranty / Certifications
Warranty
Limited 2 Year Warranty
