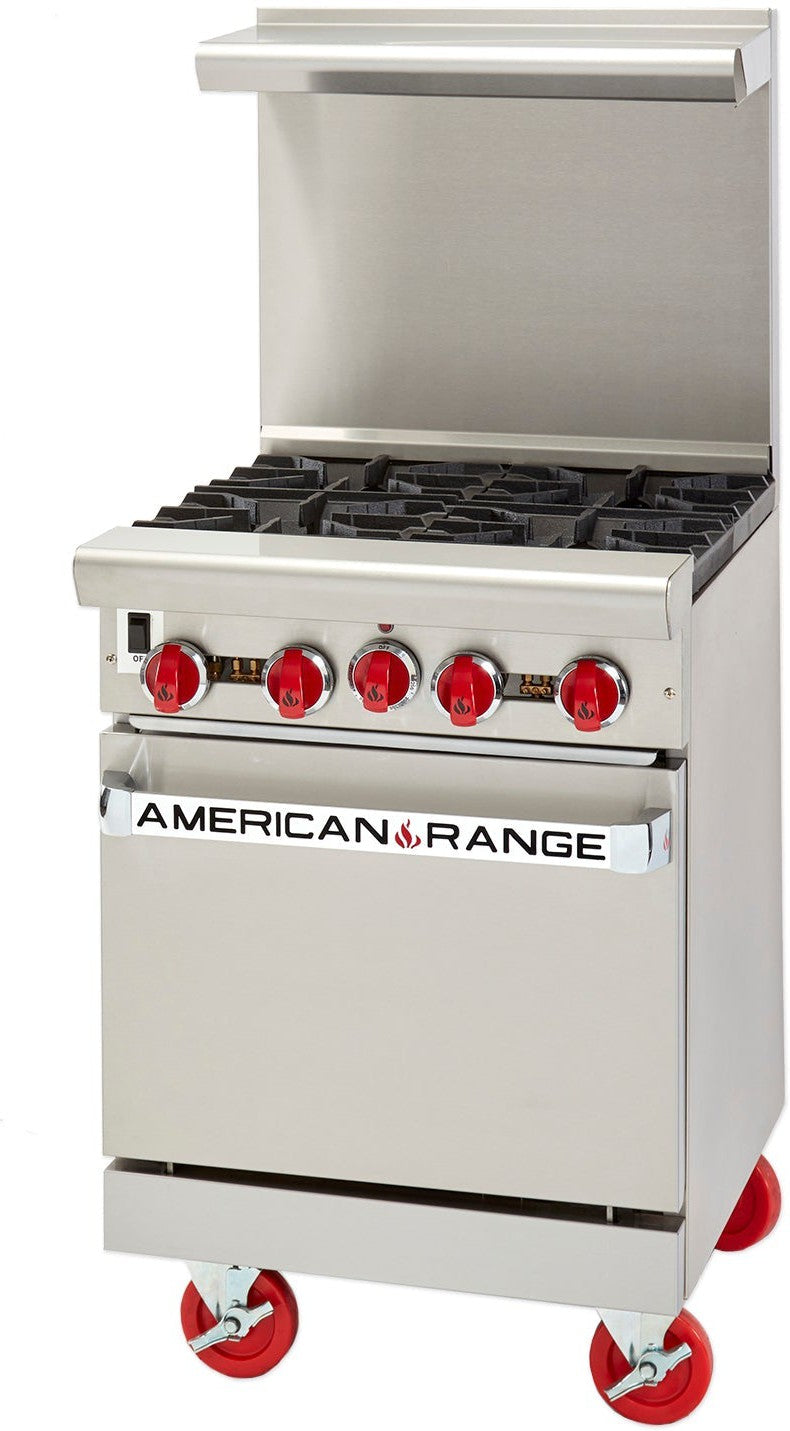

American Range - 24" Restaurant Range With 4 Burners, 20" Standard Oven, Stainless Steel - AR-4
Model Number: GBS-AR-4
Description

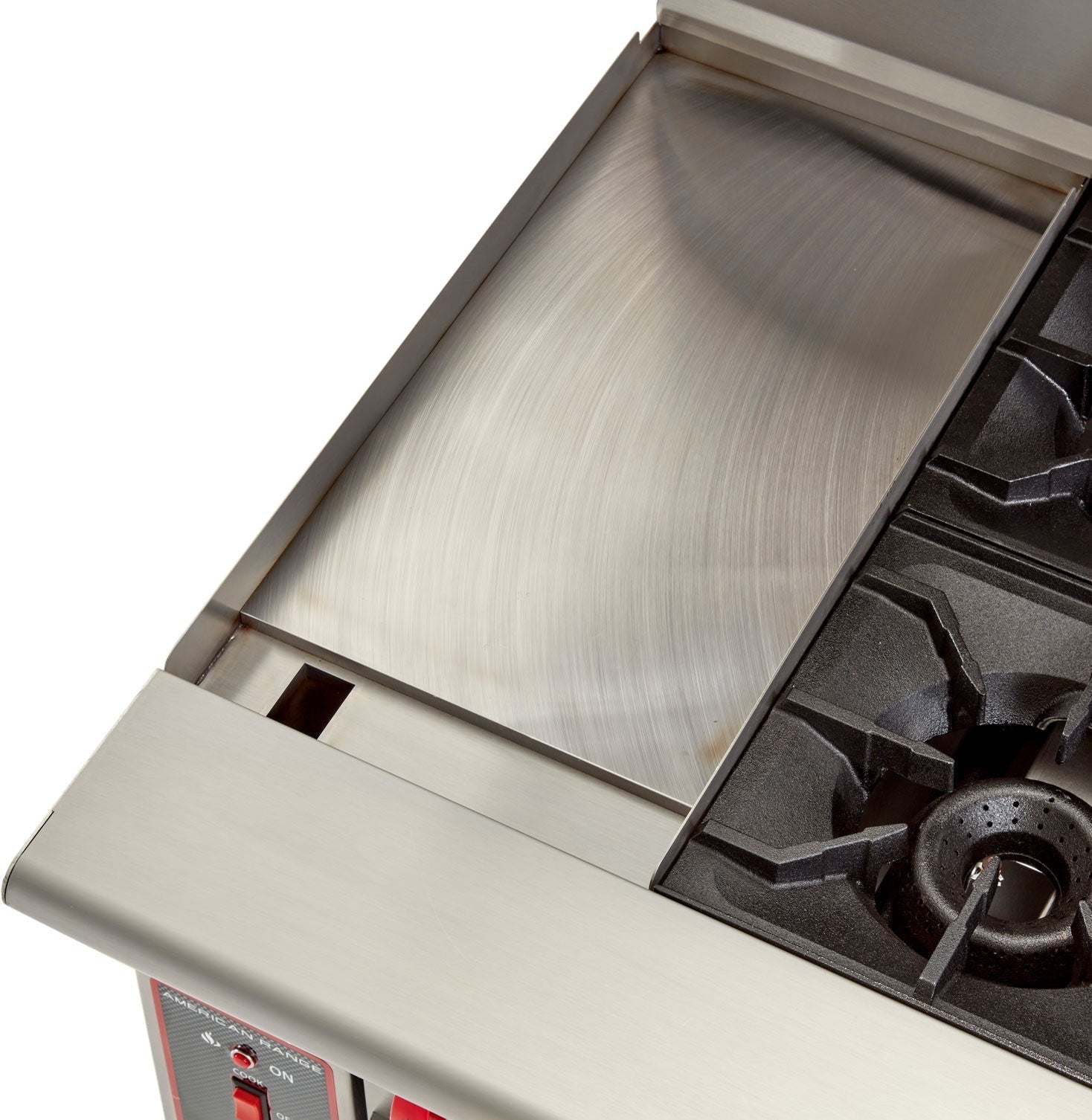

American Range, restaurant range size 24" x 32-1/2" x 56" Stainless steel front, sides, backriser, shelf and 6" adjustable legs. Removable full width drip pan. Choose 32,000 BTU/hr. open burners with anti-clog lift-off burner heads or 20,000 BTU/12" section griddle or a combo burner griddle. Heavy-duty cast iron grates, 12" x 12". Burner knobs are cool to the touch, high temperature material. One oven: 27,000 BTU/hr. standard oven, 30,000 BTU/hr. for innovection with porcelain interior and inside door panel, oven interior measures 20"W x 26-1/2"D x 13-1/2"H. Oven thermostat adjusts from 250°F to 500°F. All ovens supplied with two racks. Oven door with a spring assisted, counterweight mechanism requiring no adjustment. Rear gas connection and pressure regulator.
Key Features:-
STANDARD FEATURES
• Commercial gas range 24" wide and 32 1/2" depth.
• Cooking height 36".
• Stainless steel sides, front and 6" deep front landing ledge.
• Adjustable steel legs (casters optional).
• Choose: 6" high stainless-steel stub back, high riser
or high riser with shelf at no charge.
• Two year limited warranty, parts and labor.

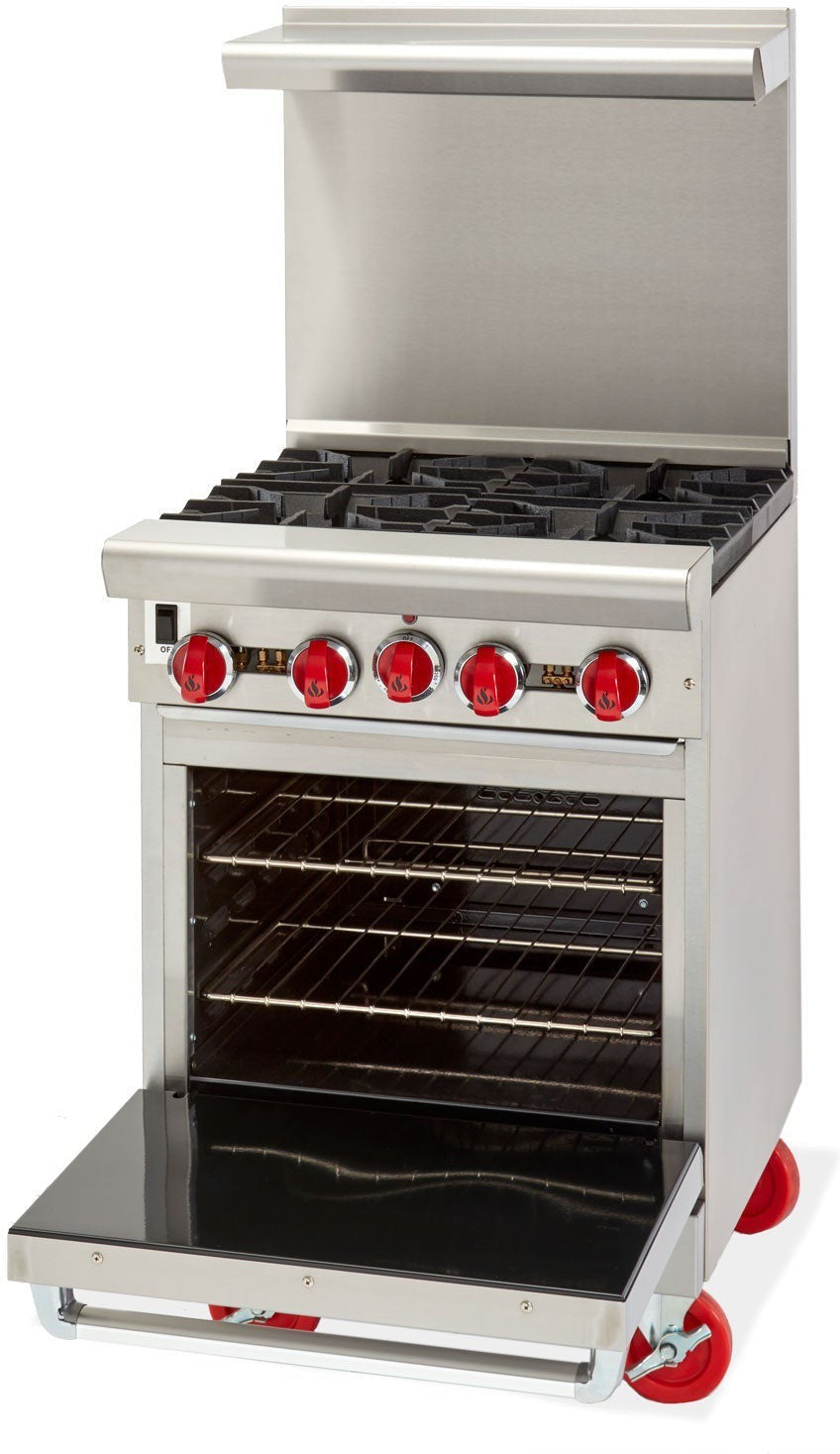

STANDARD OVEN
• Steel oven burner rated at 27,000 BTU/hr.
• Oven dimensions: 20"W x 26 1/2"D x 13 1/2"H.
• Thermostat ranging from 250°F to 500°F (121°C to 260°C).
• Oven Door: Spring assisted, counterweight door.
• Two chrome plated oven racks (additional racks optional).
• Two fixed rack positions.
• Porcelain enamel oven interior for easy cleaning.
• 100% safety gas shut off.

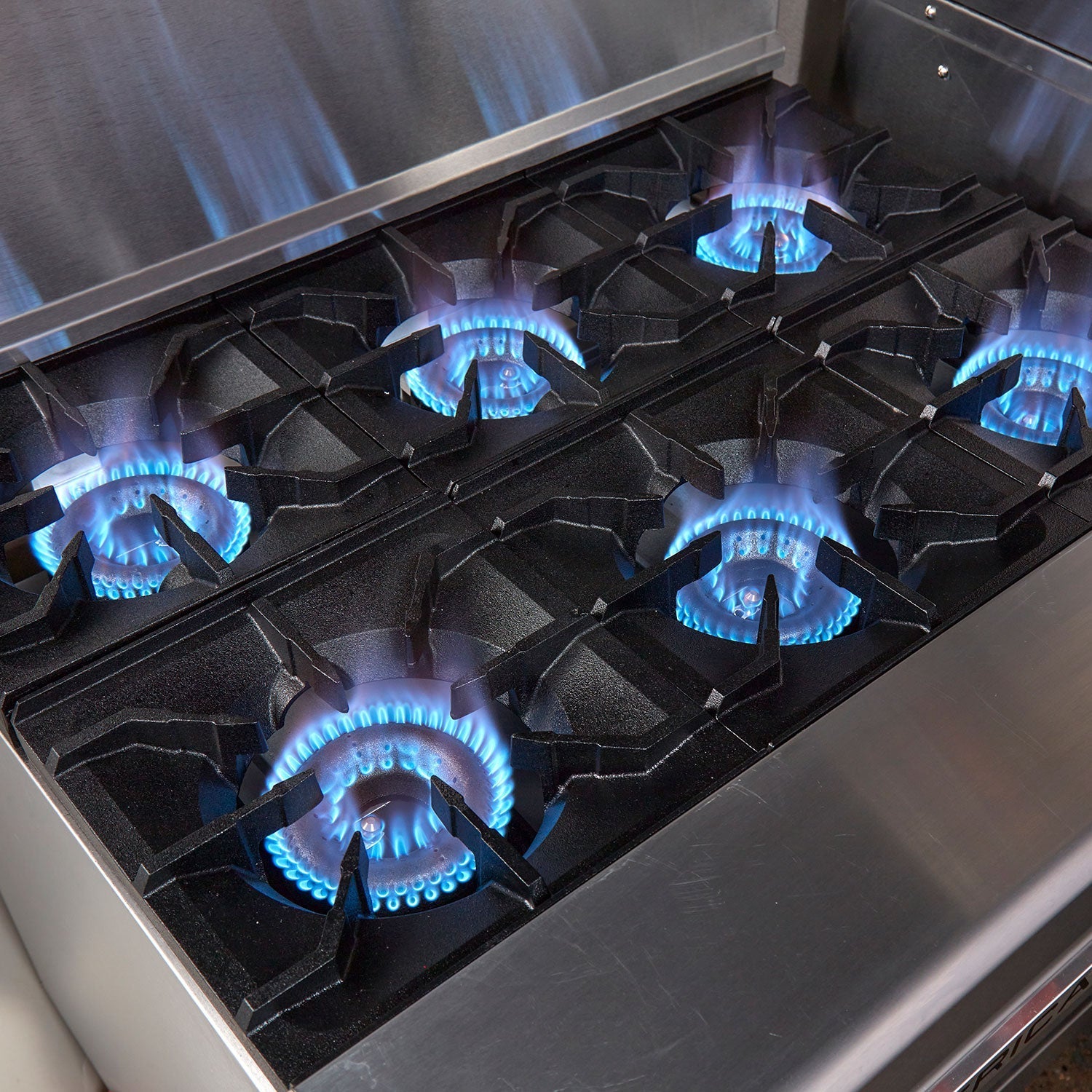

OPEN BURNERS

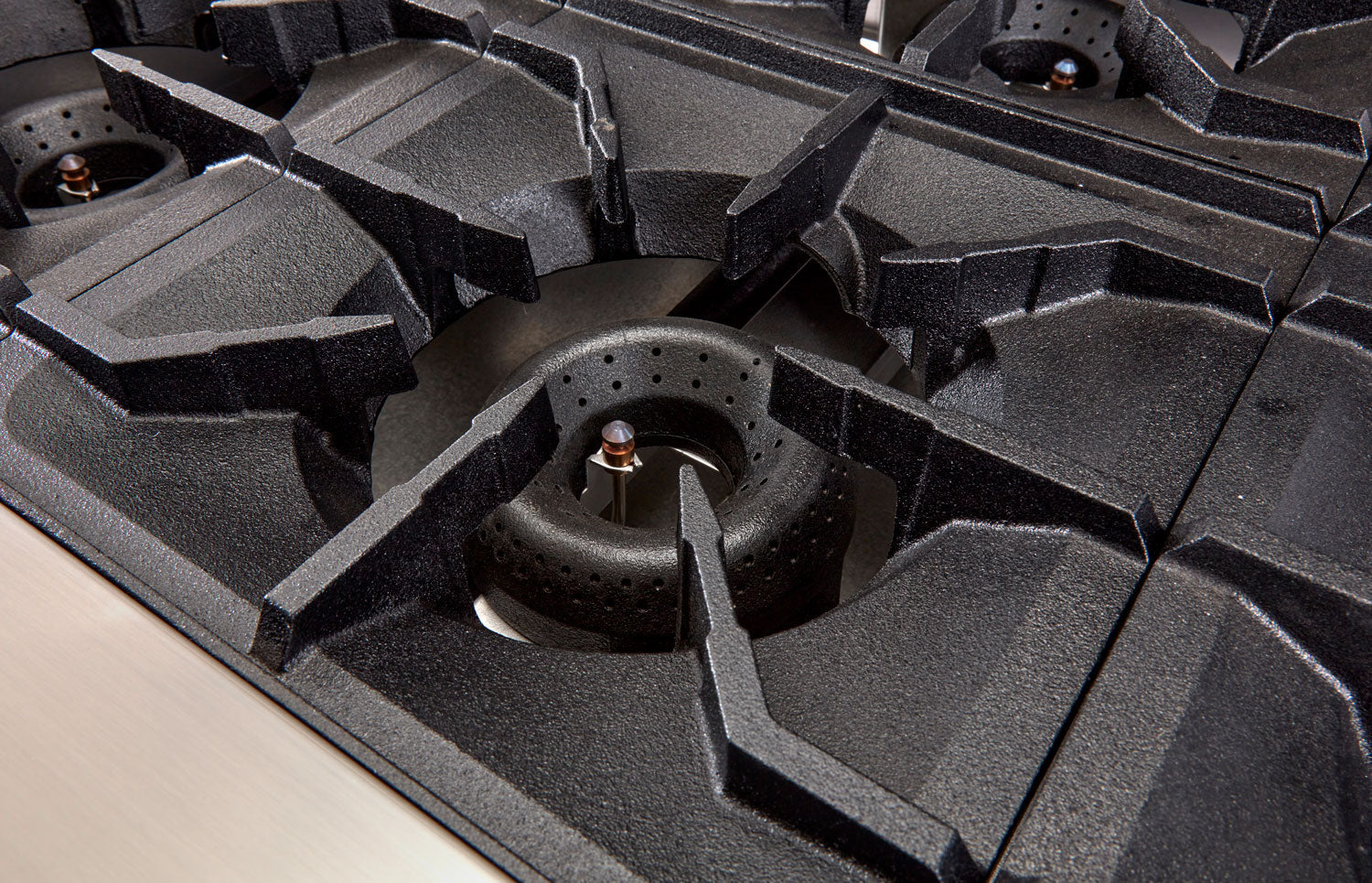

• 12" x 12" cast-iron top grates.

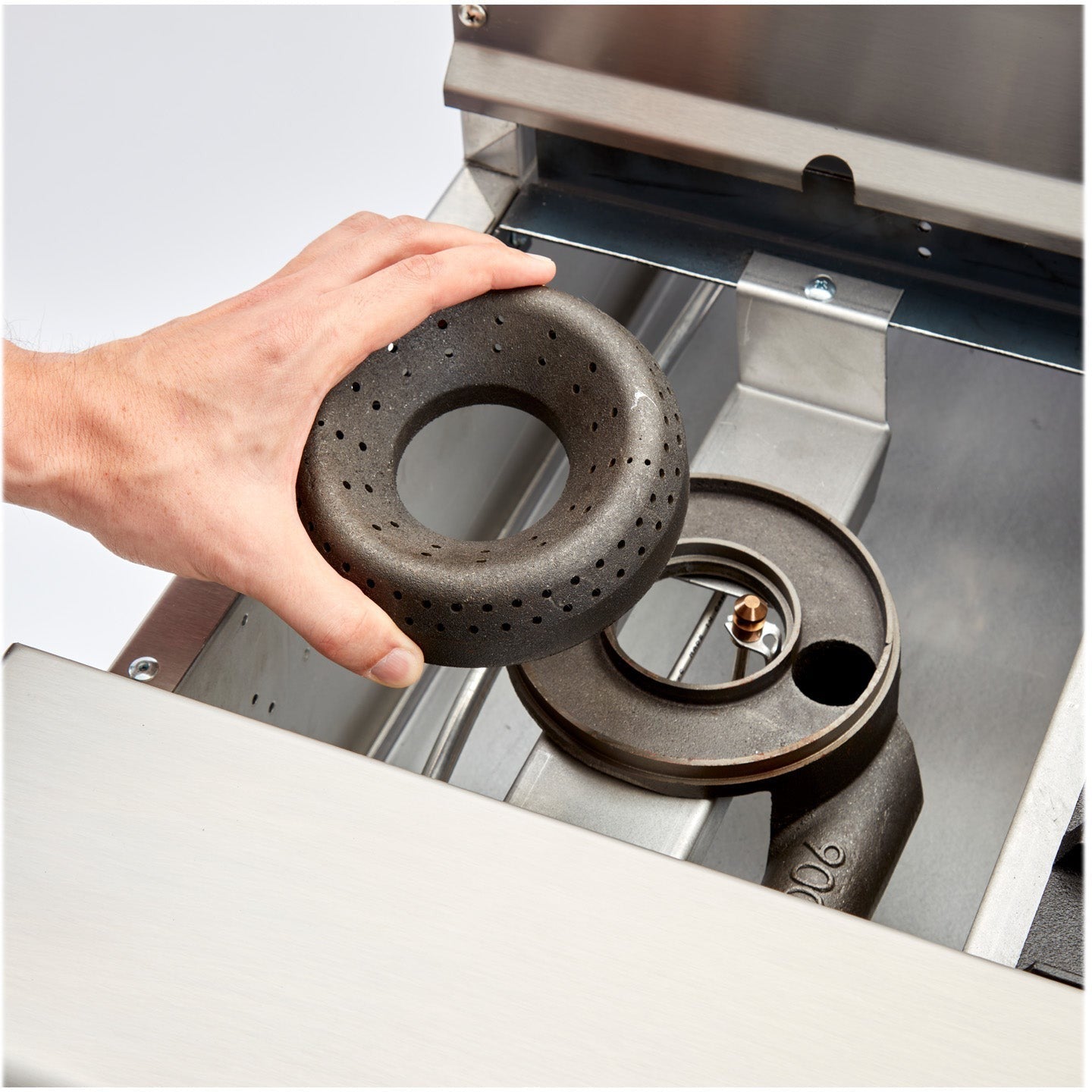

• 32,000 BTU/hr lift-off open burners.
• Removable full width drip pan under burner
High Performance
Designed for heavy-duty cooking in commercial kitchens, providing consistent and powerful heat output.
Durability
Constructed with robust materials such as stainless steel for longevity and easy cleaning.
Multiple Burners
Equipped with several high-BTU burners to handle multiple cooking tasks simultaneously.
Specifications
Dimensions
Width
24"
Depth
32.5"
Height
36"
Oven Width
20"
Oven Depth
26.5"
Oven Height
13.5"
Burner Length
12"
Burner Width
12"
Details
Weight
315 Ib
Material
Stainless Steel
Color
Stainless Steel
BTU
155,000
Steel Oven Burner BTU/Hr.
27,000
Thermostat Range
250°F to 500°F (121°C to 260°C).
KW
(45)
Burners
4
Removable Drip Plan Under Burner
Yes
100% Safety Gas Shut Off
Yes
Warranty / Certifications
Warranty
Limited 2 Year Warranty
