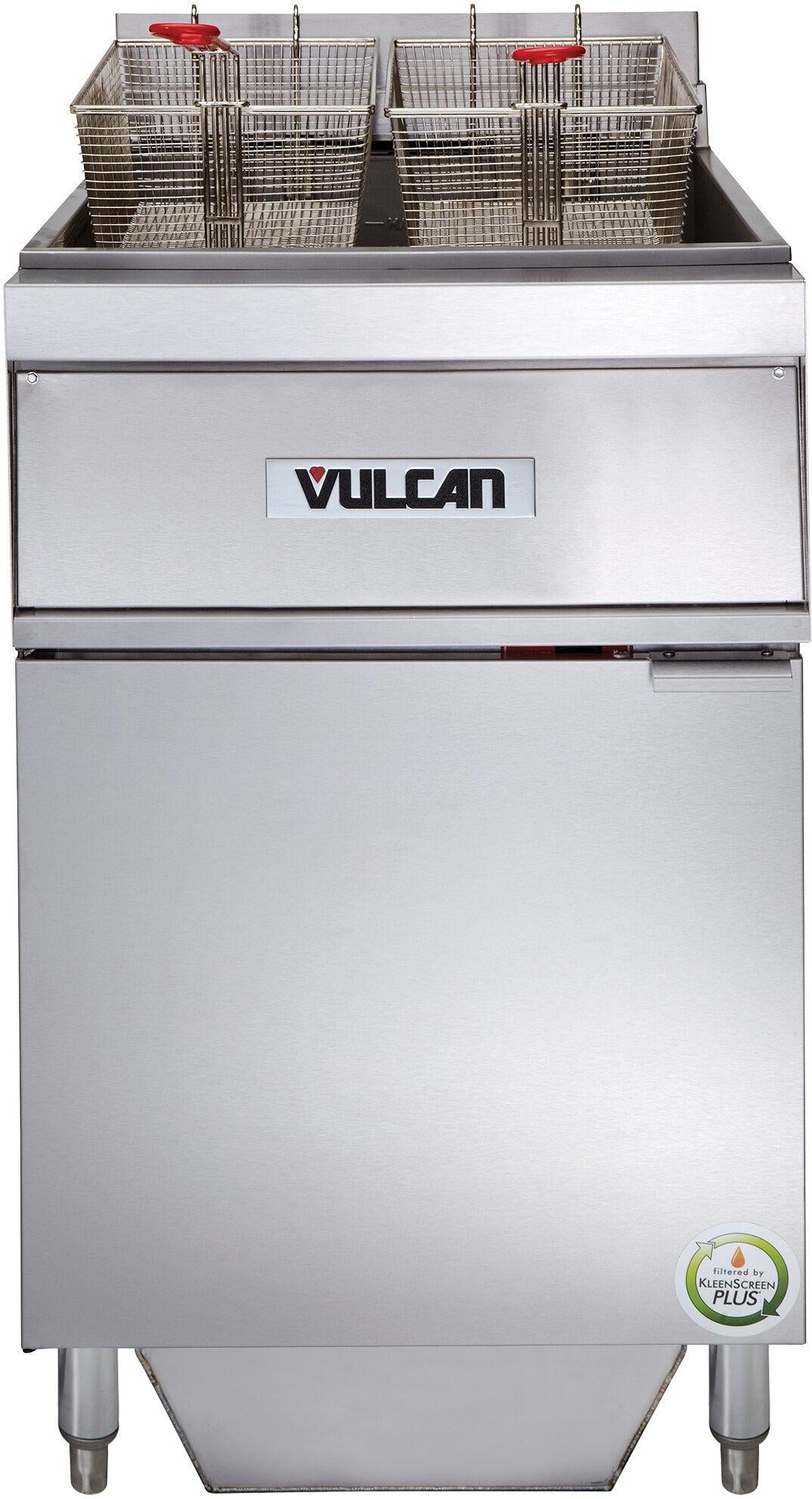

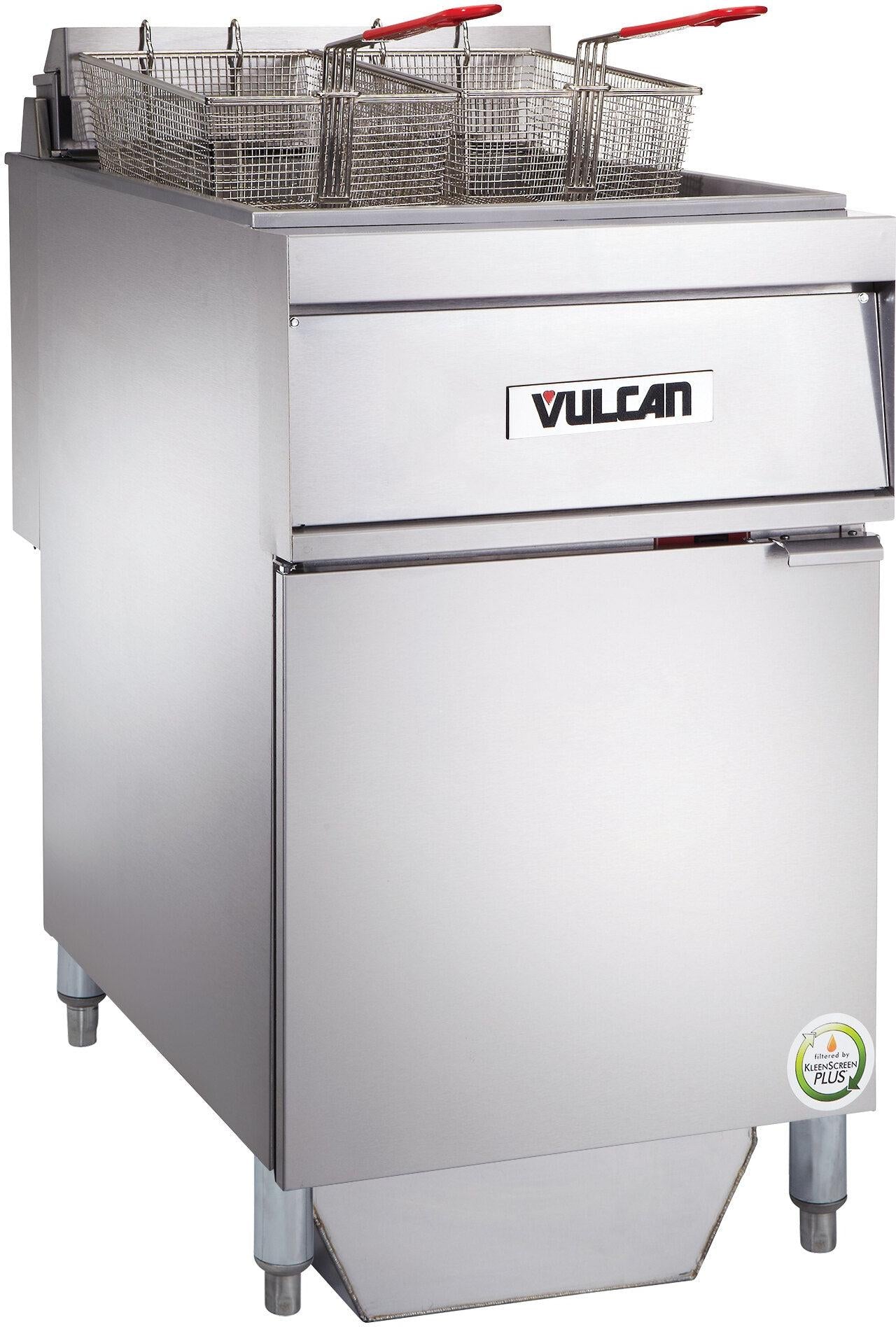

Vulcan - 85-90 lb Capacity Electric Floor Fryer, Analog Controls, KleenScreen Filtration - 1ER85AF
Model Number: HOBA-1ER85AF-1
Description
The Vulcan 85-90 lb Capacity Electric Floor Fryer, Analog Controls, KleenScreen Filtration is a commercial fryer built for consistent frying in restaurants, cafés, bars, concessions, cafeterias, and other commercial kitchens. Vulcan model 1ER85AF is specified with electric power and an electric configuration, 24 kW total power, and 85 lb total oil capacity, giving operators a dependable, application-ready configuration for busy commercial kitchens, institutional foodservice, catering operations, and back-of-house production areas.
Key Features
- Vulcan model 1ER85AF
- Product type: Fryers
- Electric configuration
- 90 lb capacity
- Analog controls
- KleenScreen filtration configuration
- Series: PowerFry Electric ER Series
- Power source: Electric
- Electrical configuration: Multiple configurations available
- Amperage per tank: 67 A
- Power per tank: 24 kW
- Total power: 24 kW
- Number of tanks: 1
- Oil capacity per tank: 85 lb
- Certifications: ENERGY STAR certified, NSF listed, CSA design certified, UL
- Country of origin: USA
- Warranty: 1 Year Limited Parts and Labor
- Tank warranty: 10 Year Limited Fry Tank
Specifications
Dimensions
Width
21"
Depth
34-3/8"
Overall Height
39-7/16"
Working Height
35-3/4"
Tank Frying Area
19-1/2" x 18"
Shipping Weight
265 lb
Details
Type
Electric Floor Fryer
Series
PowerFry Electric ER Series
Model
1ER85AF-1
Power Source
Electric
Voltage
208V/240V, 3 Phase
Amps per Tank
67 A
kW per Tank
24
Total kW
24
Number of Tanks
1
Oil Capacity per Tank
85 lb
Total Oil Capacity
85 lb
Temperature Range
200 - 390 F (+/- 2 F)
Element Type
Low watt density ribbon-style, immersed
Efficiency
Up to 85% cooking efficiency
Control Type
Solid State Analog Knob
Frypot Material
16-gauge Stainless Steel
Cabinet Material
Stainless Steel front and sides
Drain Valve
1-1/4" Full-Port Ball Valve with Drain Valve Interlock (DVI)
Baskets
Twin Fry Baskets with Plastic-Coated Handles
Legs
Four 6" adjustable legs (casters optional)
Filtration
Built-in KleenScreen PLUS, 1/3 HP pump, 8 GPM, one-touch activation
Filter Pan Capacity
92 lb
Warranty / Certifications
Certifications
ENERGY STAR certified, NSF listed, CSA design certified, UL
Country of Origin
USA
Warranty
1 Year Limited Parts and Labor
Tank Warranty
10 Year Limited Fry Tank
