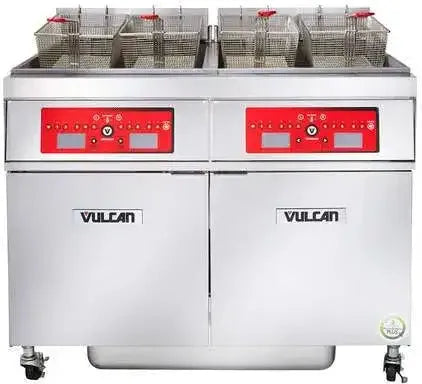

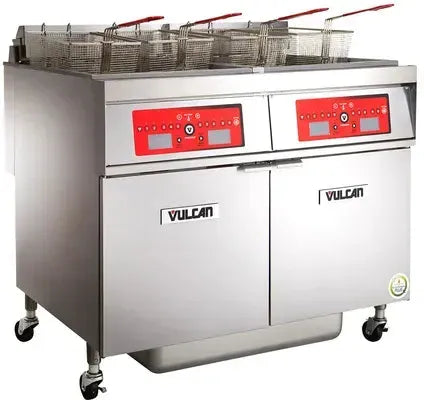

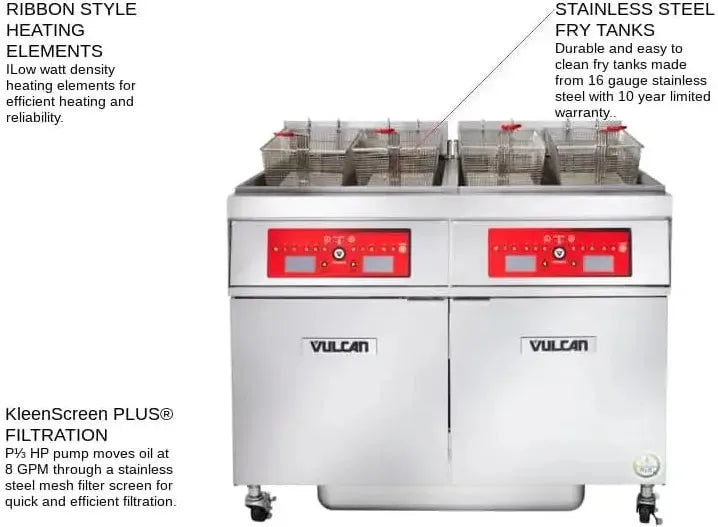

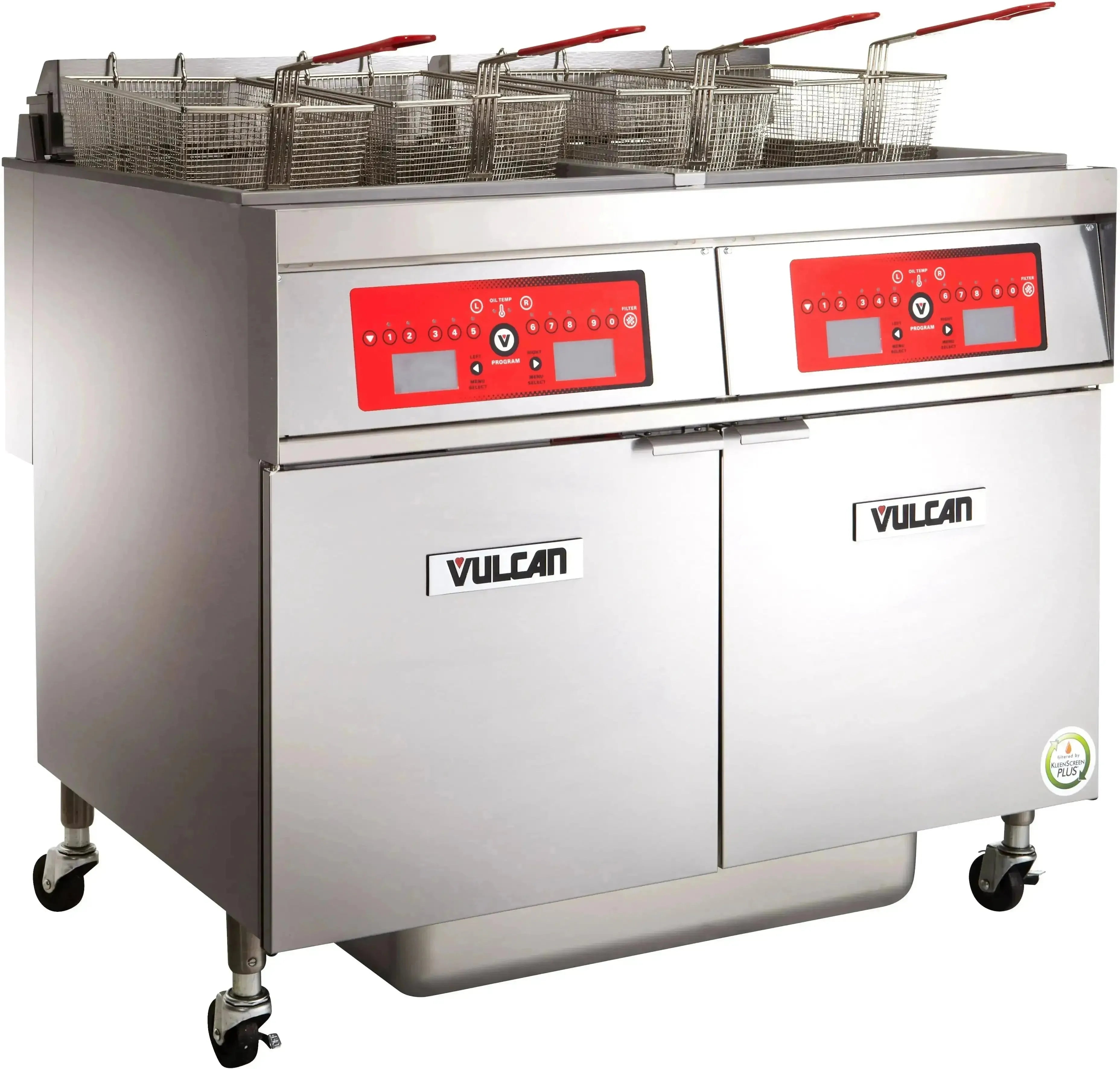

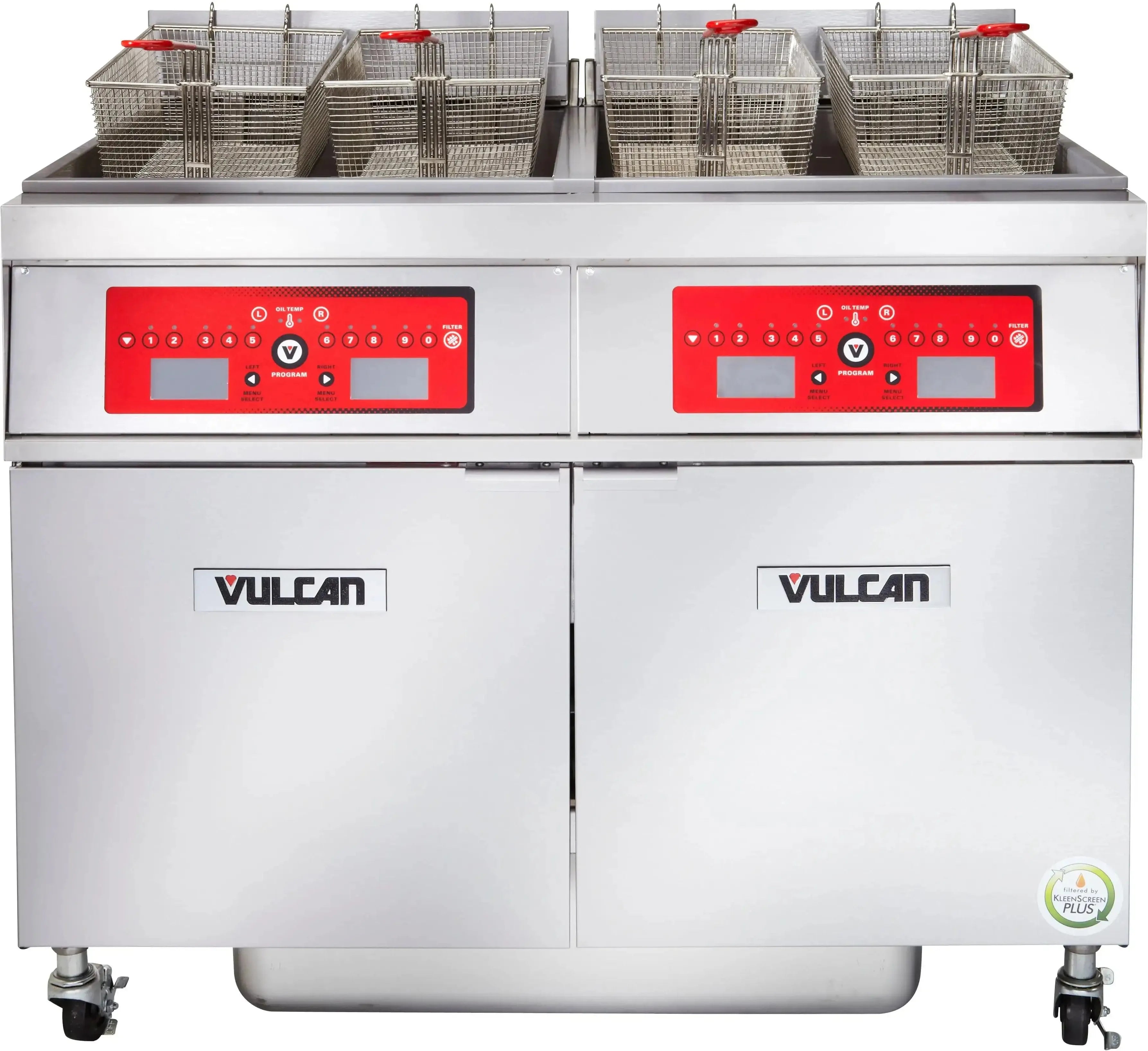

Vulcan - 2-Tank 170-180 lb Total Capacity Electric Floor Fryer, Computer Controls, KleenScreen - 2ER85CF
Model Number: HOBA-2ER85CF-1
Description
The Vulcan 2-Tank 170-180 lb Total Capacity Electric Floor Fryer, Computer Controls, KleenScreen is a commercial fryer built for consistent frying in restaurants, cafés, bars, concessions, cafeterias, and other commercial kitchens. Vulcan model 2ER85CF is specified with electric power and an electric configuration, 48 kW total power, and 170 lb total oil capacity, giving operators a dependable, application-ready configuration for busy commercial kitchens, institutional foodservice, catering operations, and back-of-house production areas.
Key Features
- Vulcan model 2ER85CF
- Product type: Fryers
- 180 lb capacity
- Computer controls
- KleenScreen filtration configuration
- Series: PowerFry Electric ER Series
- Power source: Electric
- Electrical configuration: Multiple configurations available
- Amperage per tank: 29 A
- Power per tank: 24 kW
- Total power: 48 kW
- Number of tanks: 2
- Oil capacity per tank: 85 lb
- Total oil capacity: 170 lb
- Certifications: ENERGY STAR certified, NSF listed, CSA design certified, UL
- Country of origin: USA
- Warranty: 1 Year Limited Parts and Labor
- Tank warranty: 10 Year Limited Fry Tank
Specifications
Dimensions
Width
42"
Depth
34-3/8"
Overall Height
39-7/16"
Working Height
35-3/4"
Tank Frying Area
19-1/2" x 18"
Shipping Weight
490 lb
Details
Type
Electric Floor Fryer
Series
PowerFry Electric ER Series
Model
2ER85CF-2
Power Source
Electric
Voltage
480V, 3 Phase
Amps per Tank
29 A
kW per Tank
24
Total kW
48
Number of Tanks
2
Oil Capacity per Tank
85 lb
Total Oil Capacity
170 lb
Temperature Range
200 - 390 F (+/- 2 F)
Element Type
Low watt density ribbon-style, immersed
Efficiency
Up to 85% cooking efficiency
Control Type
Programmable Computer
Frypot Material
16-gauge Stainless Steel
Cabinet Material
Stainless Steel front and sides
Drain Valve
1-1/4" Full-Port Ball Valve with Drain Valve Interlock (DVI)
Baskets
Twin Fry Baskets with Plastic-Coated Handles
Legs
Four 6" adjustable legs (casters optional)

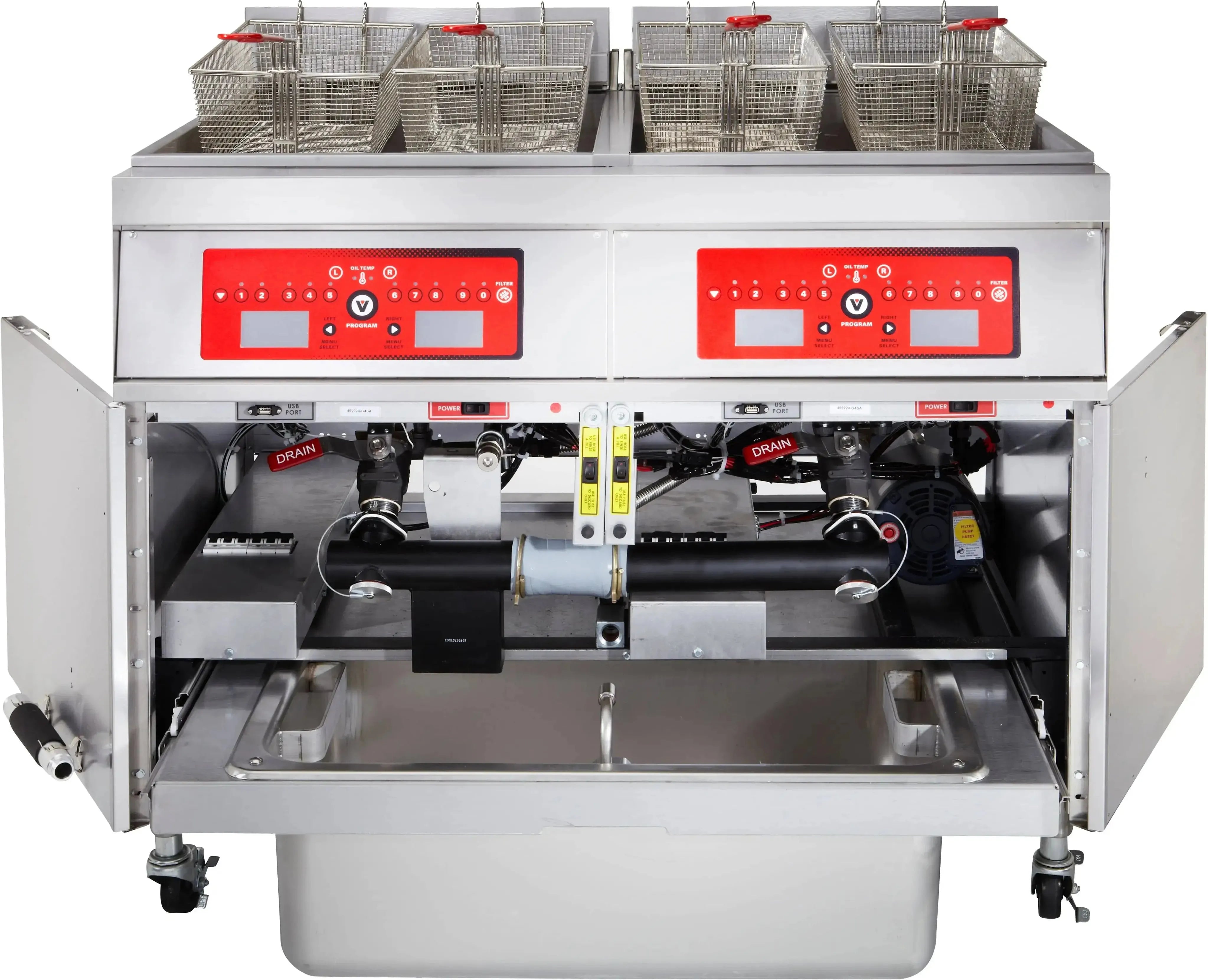

Filtration
Built-in KleenScreen PLUS, 1/3 HP pump, 8 GPM, one-touch activation
Filter Pan Capacity
92 lb
Canada Availability
480V models are NOT for sale in Canada
Control Circuit
Requires separate 120V, 1 Ph, 20A service
Warranty / Certifications
Certifications
ENERGY STAR certified, NSF listed, CSA design certified, UL
Country of Origin
USA
Warranty
1 Year Limited Parts and Labor
Tank Warranty
10 Year Limited Fry Tank
