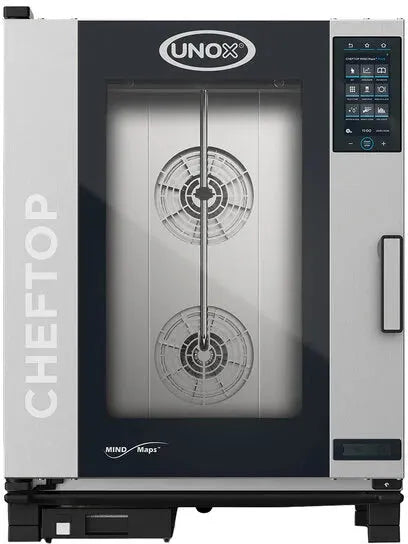

Unox - CHEFTOP MIND.Maps COUNTERTOP PLUS Natural Gas 10 Pan Half Size Combi Oven with Right-Hinged Door, 1Ph, 120V - XAVC-1011-GPRM
Model Number: UNOX-XAVC-1011-GPRM
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
120V
This product requires 120V.
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
NSF Certified
This product has met requirements for safety, quality, sustainability & performance standards set by the NSF group.
Energy Star Approved
Energy Star certified appliances are built to energy efficient standards, saving you money in the kitchen.
Description
The Unox CHEFTOP MIND.Maps COUNTERTOP PLUS is a high-performance, space-efficient combi oven engineered for professional kitchens that demand precision, flexibility, and speed. Designed for gastronomy-level cooking, this countertop unit supports a full range of processes including steaming, roasting, grilling, pan frying, sous-vide, low-temperature cooking, regeneration, and fresh or frozen baking. Built with a robust AISI 316L stainless steel cooking chamber featuring rounded edges, triple-glass right-hinged door, and integrated LED lighting, it delivers durability, hygiene, and visibility in one compact footprint. Advanced Unox Intensive Cooking and Intelligence Performance technologies, paired with an intuitive 9.5" touchscreen, ensure consistent, repeatable results—even without highly trained staff—making it ideal for catering, QSRs, convenience stores, and high-output kitchens with limited space.
Key Features
- 10 half-size pan capacity for efficient batch cooking
- COUNTERTOP PLUS compact design ideal for space-constrained kitchens
- CHEFUNOX automatic cooking management selects optimal parameters
- MIND.Maps™ technology to draw cooking processes directly on the display
- MULTI.TIME manages and monitors up to 10 simultaneous cooking processes
- MISE.EN.PLACE synchronizes pan insertion for simultaneous completion
- READY.COOK presets for fast startup and simplified operation
- Wide temperature range from 86°F to 500°F
- CLIMA.Control humidity or dry air adjustment in 10% increments
- Delta T cooking with core probe and SOUS-VIDE capability
- STEAM.Maxi for saturated steam production and DRY.Maxi for rapid moisture removal
- 4-speed fan system for uniform heat distribution
- 9.5" digital touchscreen with WiFi and USB connectivity
- AUTO.Maticdoor opening with right-hinged triple-glass door
- Anti-tip tray supports with 3" spacing for safe loading
- Durable stainless steel construction for long-term commercial use
Note: Lateral support customisation available upon request
Specifications
Dimensions
Width
29.5"
Depth
30"
Height
39.7"
Tray Size
GN 1/1
Tray Pitch
2.6"
Control Panel Size
9.5"
Details
Weight
258 lbs
Product Type
Commercial Countertop Combi Oven
Power Type
Natural Gas
Voltage
120V
Phase
1 Phase
Frequency
60 Hz
Wattage
1 kW
Amperage
8 Amps
Plug Type
NEMA 15-20P
Control Type
Digital Touchscreen
Maximum Temperature
500°F
Cooking Programs
1000+ Programs
Manual Cooking Steps
Up to 9
Fan System
4-Speed Fan
Humidity Control
CLIMA.Control (10% Increments)
Sous-Vide Compatible
Yes
Pan Type
Half Size Sheet Pans
Number of Trays
10
Number of Chambers
1
Number of Decks
Single
Number of Doors
1
Door Type
Glass
Hinge Location
Right
Material
Stainless Steel
Warranty / Certifications
Certification
cMETus Listed
Reviews
Unox is shipped free across Canada on orders over $149. Unox provides a range of commercial ovens ranging in size from quarter size to full size, and come in both 110V/120V and 220V/240V providing a solution for kitchens both large and small. With both manual and digital options as well as available humidity controls and convection modes, there is an oven appropriate for every customer.
