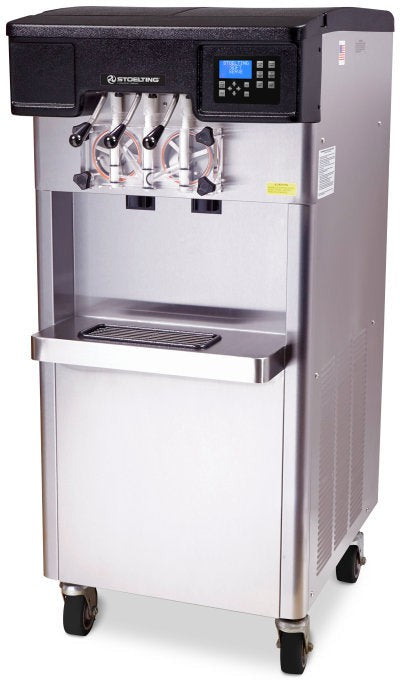

Stoelting - 25.62" x 33.75" x 57.75" 208-240 V Water Cooled Gravity Fed Twin Twist Soft Serve Floor Machine - F231-109I3-2X (Pre-Order Now, ETA 8-12 Weeks)
Model Number: AXOM-F231-109I3-2X
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
Introducing your newest and hardest working employee, the Stoelting gravity-fed twin-twist soft serve floor machine. This 208- to 240-volt, 3-phase, air-cooled model dispenses two flavors, or a combination of the two, and its tamper-proof controls make it ideal for self-serve ice cream operations. The highly efficient auger design gently folds the entire contents of the freezing cylinder, delivering a thick and creamy product from open to close. It couldn’t be easier to use or own. Its simplified design allows for quick assembly after cleaning; the self-closing spigot eliminates waste; the ultradurable parts lower maintenance costs, and its compact footprint saves valuable floor space.
Key Features:-
- 208- to 240-volt 3-phase air-cooled model with two 3-gallon hoppers that dispense two single flavors or combine them in a twist
- Precision-controlled refrigeration system designed for quality product consistency from the first order to the last
- Intellitec2® control communicates with the operator through a multiline graphics LCD display using full-text instructions
- Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
- Compact design with a small footprint saves valuable floor space
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Refrigerated hopper with independent refrigeration system maintains safe storage temperatures in any environment
- Robust compressor reduces freeze-down times and promotes efficient operation
History
Since 1905, Stoelting Foodservice has been providing high-quality frozen treat equipment to create delicious frozen desserts while providing ease of operation and effortless cleaning.
-v1715171003504.jpeg?540x540){kind=tracking}
Efficient Freezing Technology
Elevate your frozen creations with our efficient freezing technology. Experience rapid chilling for smoother, creamier beverages. Unlock the secret to quicker, tastier frozen treats today!
NSF Certified
NSF Certification assures consumers of products' safety and quality, meeting stringent standards set by NSF International. Look for the NSF Certified mark to ensure confidence in food safety and sanitation.
Specifications
Dimensions
Height
57.75"
Width
25.62"
Depth
33.75"
Details
Weight
640 Ib
Frequency (Hz)
60
Phase
3
Plug
NEMA L15-20P
Plug Connection
Yes
Running Amps
11.52
Voltage
208-240
Ouput Capacity per Hour Running Both Sides Gal
11.5
Ouput Capacity per Hour Running One Side Gal
8.5
Cooling
Water
Compressor (Btu/hr)
1300
Number of Drive Motors
2
Drive Motor (Hp)
3/4
Number of Hoppers
2
Number of Freezing Cylinders
2
Number of Freezing Cylinder Compressors
1
Freezing Cylinder Compressor (Btu/hr)
12000
Plumbing Fittings
Units require 1/2" N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM. Ideal EWT of 50°-70°F
Hopper Capacity Gal
5
Hopper Capacity
18.13 Lt.
Total Hopper Capacity Gal
10
Total Hopper Capacity
37.85 Lt.
Freezing Cylinder Capacity Gal
0.85
Freezing Cylinder Capacity
3.22 Lt.
