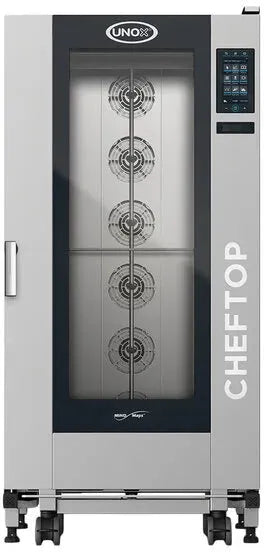

Unox - CHEFTOP MIND.Maps BIG PLUS Electric 20 Pan Full Size Trolley Combi Oven with Left-Hinged Door, 3Ph, 240V - XAVL-2021-DPLS
Model Number: UNOX-XAVL-2021-DPLS
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
208-240V
This product requires 208V-240V.
Three Phase
This product requires three phase power, common in commercial establishments and restaurants.
NSF Certified
This product has met requirements for safety, quality, sustainability & performance standards set by the NSF group.
Energy Star Approved
Energy Star certified appliances are built to energy efficient standards, saving you money in the kitchen.
Description
The Unox CHEFTOP MIND.Maps BIG PLUS is a technologically advanced commercial trolley combi oven designed for high-volume professional kitchens. Built for gastronomy-level cooking, this full-size mobile combi oven supports a wide range of cooking processes including steaming, roasting, grilling, sous-vide, low-temperature cooking, regeneration, and fresh or frozen baking. Powered by Unox Intensive Cooking and Intelligence Performance technologies, it delivers consistent, repeatable results for any load size. With automatic cooking management through CHEFUNOX and an intuitive 9.5" touchscreen control panel, this oven ensures perfect outcomes even without highly trained staff, making it ideal for hotels, catering operations, commissaries, and large-scale foodservice environments.
Key Features
- 20 full-size GN 2/1 tray capacity for high-volume food production
- CHEFUNOX automatic cooking process management for consistent results
- MIND.Maps™ technology allows drawing cooking processes directly on the touchscreen
- MULTI.TIME function manages up to 10 simultaneous cooking processes
- MISE.EN.PLACE synchronizes pan insertion so all dishes finish together
- READY.COOK preset programs for fast and easy operation
- Wide temperature range from 86°F to 572°F for versatile cooking applications
- CLIMA.Control system enables precise humidity or dry air adjustment
- Delta T cooking with core probe support for precision cooking
- SOUS-VIDE cooking capability for advanced culinary techniques
- 4-speed fan system ensures even heat distribution
- 9.5" digital touchscreen control panel for intuitive operation
- Mobile trolley design with casters for easy positioning and cleaning
- Durable stainless steel construction for long-term commercial use
- Left-hinged glass door provides visibility and ergonomic access
Specifications
Dimensions
Width
35"
Depth
45"
Height
73"
Distance Between Trays
2"
Control Panel Size
9.5"
Details
Weight
748 lbs
Series
CHEFTOP MIND.Maps BIG PLUS
Power Type
Electric
Voltage
208–240V
Phase
3 Phase
Frequency
60 Hz
Wattage
53.7–71 kW
Amperage
164–172.5 Amps
Plug Type
Hardwired
Control Type
Digital Touchscreen
Maximum Temperature
572°F
Cooking Programs
1000+ Programs
Number of Cooking Steps
Up to 9
Fan System
4-Speed Fan
Humidity Control
CLIMA.Control (10% Increments)
Sous-Vide Compatible
Yes
Pan Type
Full Size Food Pans / Full Size Sheet Pans
Tray Size
GN 2/1
Number of Trays
20
Number of Chambers
1
Number of Decks
Single
Number of Doors
1
Door Type
Glass
Hinge Location
Left
Material
Stainless Steel
Warranty / Certifications
Certification
cMETus Listed
