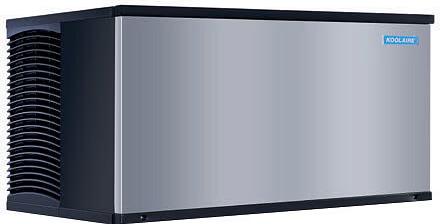

Koolaire - 48"W 208-230V Half Cube Air Cooled Ice Machine Head, 1652 lbs/day - KYT1700A261
Model Number: MANC-KYT1700A261
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
208V
NSF Listed
uIus
CE Certified
This product meets the health, safety, and environmental protection standards to be CE certified.
Energy Star Approved
Energy Star certified appliances are built to energy efficient standards, saving you money in the kitchen.
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
Description
Built for high-volume environments, the Koolaire KYT-1700A Air Cooled Ice Machine Head produces up to 1,800 lbs of half-cube ice daily under optimal conditions, with a certified daily output of 1,380 lbs. Half-cube ice is perfect for quickly chilling drinks, making it ideal for restaurants, convenience stores, and beverage stations. The corrosion-resistant exterior ensures long-term durability, while the food zone's removable components and white plastic parts allow for quick and easy maintenance. With a reliable air-cooled refrigeration system, automated ice thickness control, and tool-assisted access to key components, this unit delivers high performance with simplified upkeep.
Key Features:
- Produces up to 1,800 lbs of ice per day in ideal conditions
- AHRI-certified daily ice production: 1,380 lbs
- Half-cube ice rapidly cools beverages with high surface contact
- Durable, corrosion-resistant exterior resists wear
- Air-cooled refrigeration system for efficient performance
- Ice production triggered by toggle switch set to “ice”
- Harvest probe and float switch ensure proper ice thickness and harvest timing
- White plastic components in the food zone for easier dirt visibility
- Food zone accessible by removing 2 screws and front door
- Removable parts: pump, floats, distribution tube, water trough, and water shield
- Ice deflector required when used with bin (sold separately); not needed with dispenser
- Half-cube ice size: 0.375 in x 1.125 in x 0.875 in
- Uses eco-friendly R410A refrigerant
Specifications
Dimensions
Width
48"
Depth
24"
Height
29.5"
Details
Weight
292 lbs
Daily Ice Production
1,652 lbs
AHRI Certified Production
1,380 lbs
Ice Type
Half Cube
Cube Size
0.375 in x 1.125 in x 0.875 in
Compressor Type
Air Cooled
Refrigerant
R410A
Voltage
208-230V
Amperage
18.2 A
Wattage
4.6 kW
Hertz
60Hz
Phase
1 Ph
Product Type
Ice Machine Head
Ambient Temp Range
40°F – 110°F
Water Temp Range
40°F – 90°F
Water Pressure Range
20-80 PSI
Top & Side Clearance
8 in
Rear Clearance
5 in
Ice Bin/Dispenser
Sold Separately
Warranty / Certifications
Warranty
3-year Parts & Labor; 5-year Parts & Labor on Evaporator; 5-year Parts & 1-year Labor on Compressor
Reviews
Koolaire is shipped free across Canada on orders over $149. Built for operators who understand the importance of reliable ice production, Koolaire Ice Kube Machines are engineered to deliver clear, consistently shaped cubed ice with maximum cooling efficiency. Whether you're running a busy restaurant, bar, or catering service, Koolaire ensures dependable performance and high-quality ice when you need it most.
