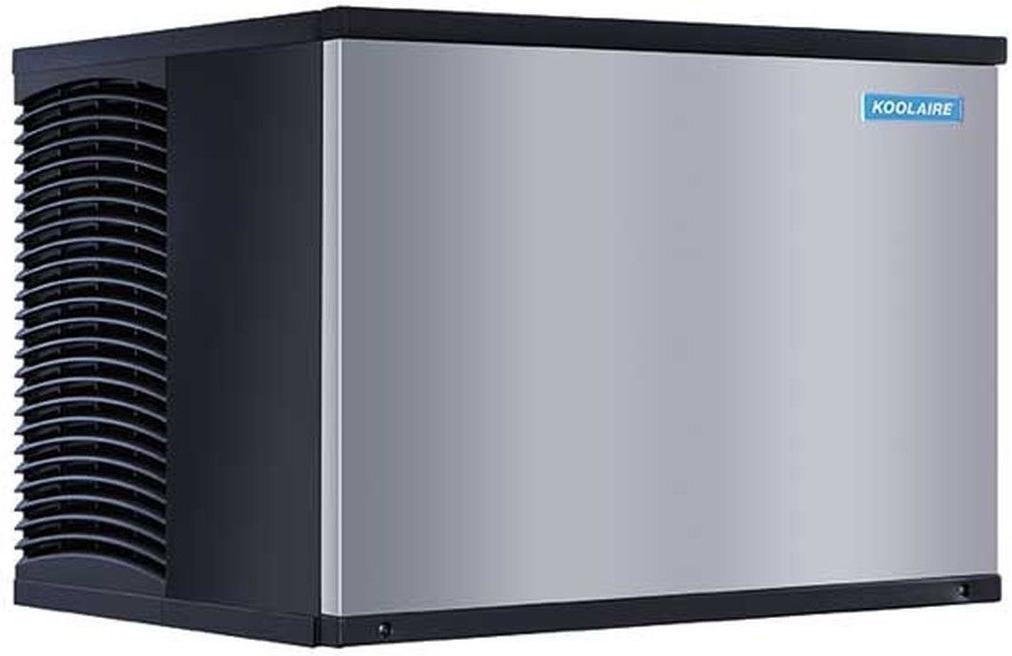

Koolaire - 30"W Full Cube Air Cooled Ice Machine Head, 330 lbs/day - KDT0300A161
Model Number: MANC-KDT0300A161
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
120V
This product requires 120V.
NSF Listed
uIus
CE Certified
This product meets the health, safety, and environmental protection standards to be CE certified.
Energy Star Approved
Energy Star certified appliances are built to energy efficient standards, saving you money in the kitchen.
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
Description
Designed for high-demand commercial environments, the Koolaire KDT-0300A ice machine head delivers reliable performance with a daily production capacity of up to 330 lbs of full-cube ice. These large, slow-melting cubes are ideal for beverages in restaurants, bars, and hotels. The air-cooled unit is built with an easy-to-clean food zone, fingerprint-resistant finish, and front-accessible components for simplified maintenance. Bins or dispensers are sold separately, making it a flexible solution that integrates seamlessly into your existing setup.
Key Features:
- Produces up to 330 lbs of full-cube ice daily under optimal conditions
- AHRI-certified production capacity of 230 lbs
- Full-cube size: 0.875 in. x 0.875 in. x 0.875 in.—slow-melting and perfect for beverages
- Smudge- and fingerprint-resistant exterior finish
- Food zone components are removable by hand for easy cleaning
- Two-screw removable front panel provides quick access to interior
- Toggle switch activates ice-making cycle with a water purge and fan-cooling system
- Refrigerant warms evaporator to release ice after freezing cycle
- Air-cooled baffle prevents condenser air recirculation for consistent performance
- Uses eco-friendly R410A refrigerant
- Requires ice bin or dispenser (sold separately)
- Ice deflector required when used with bin; not needed with dispenser
- Suitable ambient air temperature range: 40°F – 110°F
- Water temperature range: 40°F – 90°F
- Water pressure range: 20 – 80 PSI
- Clearance Requirements: 12 in. top/sides, 5 in. rear
Specifications
Dimensions
Width
30"
Depth
24"
Height
21.5"
Details
Weight
137 lbs
Daily Ice Production
330 lbs
AHRI Certified Production
230 lbs
Ice Type
Full Cube
Full Cube Size
0.875 in x 0.875 in x 0.875 in
Refrigerant
R410A
Compressor Type
Air Cooled
Voltage
115V
Amperage
9.4 A
Power
5.9 kW
Hertz
60Hz
Phase
1 Ph
Product Type
Ice Machine Head
Clearance (Top/Sides)
12 in
Clearance (Rear)
5 in
Ambient Temp Range
40°F – 110°F
Water Temp Range
40°F – 90°F
Water Pressure Range
20 – 80 PSI
BTU Output
4,600 avg / 5,450 max
Bin/Dispenser
Sold Separately
Warranty / Certifications
Warranty
3-year Parts & Labor; 5-year Parts & Labor on Evaporator; 5-year Parts & 1-year Labor on Compressor
