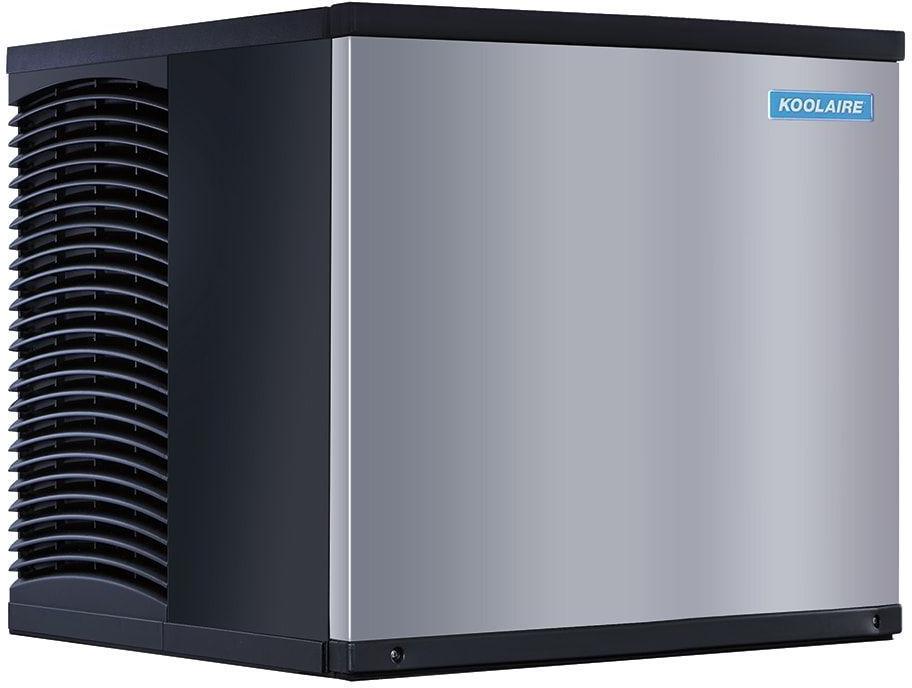

Koolaire - 30"W 120V Half Cube Water Cooled Ice Machine Head, 422 lbs/day - KYT0400W161
Model Number: MANC-KYT0400W161
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
120V
This product requires 120V.
NSF Listed
uIus
CE Certified
This product meets the health, safety, and environmental protection standards to be CE certified.
Energy Star Approved
Energy Star certified appliances are built to energy efficient standards, saving you money in the kitchen.
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
Description
The Koolaire KYT-0400W ice machine head is designed to produce up to 422 lbs of half-cube ice per day under ideal conditions. Ideal for beverages, bagging, or display purposes, its half-size cubes stack tightly in glasses to reduce drink dilution. This water-cooled unit operates quietly and generates less ambient heat, making it a smart option for guest-facing environments like hotels or cafes with recirculating cold water systems. Featuring a white plastic food zone for easy identification of scale and dirt, and tool-free removable parts like the distribution tube and water shield, this unit is built with cleaning and efficiency in mind. Pair it with a compatible Koolaire bin or dispenser (sold separately) for complete ice storage.
Key Features:
- Daily ice production capacity: 422 lbs in ideal conditions, 360 lbs in standard conditions
- Produces half-cube ice ideal for beverages and displays
- Half-cube dimensions: 0.375 in x 1.125 in x 0.875 in
- Operates with a water-cooled condenser for quieter, heat-free performance
- White plastic food zone highlights buildup and dirt for easy cleaning
- Tool-free removal of pump, water shield, and distribution tube for fast maintenance
- Durable exterior with a stainless-steel appearance that resists smudging
- Uses R-410A refrigerant
- Ice bin or dispenser required and sold separately
- Recommended for facilities with recirculating cold water systems
- Operating ambient temperature: 40°F – 100°F
- Water temperature range: 40°F – 90°F
- Water pressure range: 20 – 80 PSI
Specifications
Dimensions
Width
30"
Depth
24"
Height
21.5"
Details
Weight
147 lbs
Daily Ice Production
422 lbs
AHRI Certified Production
360 lbs
Ice Type
Half Cube
Cube Size
0.375 in x 1.125 in x 0.875 in
Refrigerant
R410A
Compressor Type
Water Cooled
Voltage
115V
Amperage
11.4 A
Power
4.7 kW
Hertz
60Hz
Phase
1 Ph
Product Type
Ice Machine Head
Ambient Temp Range
40°F – 100°F
Water Temp Range
40°F – 90°F
Water Pressure Range
20 – 80 PSI
Bin/Dispenser
Sold Separately
Warranty / Certifications
Warranty
3-year Parts & Labor; 5-year Parts & Labor on Evaporator; 5-year Parts & 1-year Labor on Compressor
