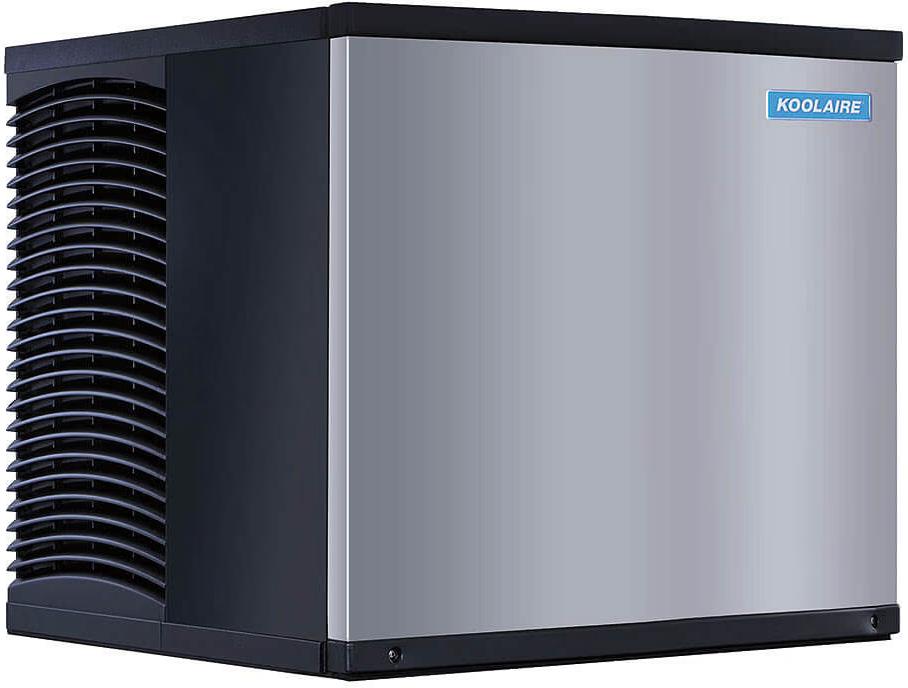

Koolaire - 22"W 120V Half Cube Water Cooled Ice Machine Head, 435 lbs/day - KYT0420W161
Model Number: MANC-KYT0420W161
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
120V
This product requires 120V.
NSF Listed
uIus
CE Certified
This product meets the health, safety, and environmental protection standards to be CE certified.
Energy Star Approved
Energy Star certified appliances are built to energy efficient standards, saving you money in the kitchen.
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
Description
The Koolaire KYT-0420W ice machine head is a high-efficiency, water-cooled unit ideal for commercial beverage service. It produces up to 435 lbs of half-cube ice daily, which is perfect for soft drinks and blended drinks due to its compact shape and quick cooling ability. With a water-cooled condenser, this model runs quieter than air-cooled units and performs well in high-temperature environments. Its smudge-resistant exterior and white plastic food zone promote easy maintenance, while removable internal components simplify cleaning. Designed for reliability and ease of use, this unit must be paired with a separate bin or dispenser for full operation.
Key Features:
- Produces up to 435 lbs of half-cube ice per day in optimal conditions
- AHRI-certified daily production: 390 lbs
- Half-cube size: 0.375 in x 1.125 in x 0.875 in
- Water-cooled condenser offers quiet, efficient operation
- White plastic food zone helps highlight dirt for easier cleaning
- Water shield prevents excess water from reaching sensitive components
- Tool-free removal of water shield, pump, and distribution tube for fast maintenance
- Durable exterior with stainless-steel-like appearance and smudge-resistant finish
- Ideal for sodas and blended drinks due to ice's tight-packing, fast-cooling form
- Ice bin or dispenser sold separately
- Operating air temperature: 40°F – 110°F
- Water temperature range: 40°F – 90°F
- Required water pressure: 20 – 80 PSI
Specifications
Dimensions
Width
22"
Depth
24"
Height
21.5"
Details
Weight
140 lbs
Daily Ice Production
435 lbs
AHRI Certified Production
390 lbs
Ice Type
Half Cube
Cube Size
0.375 in x 1.125 in x 0.875 in
Refrigerant
R410A
Compressor Type
Water Cooled
Voltage
115V
Amperage
9.6 A
Power
4.6 kW
Hertz
60Hz
Phase
1 Ph
Product Type
Ice Machine Head
Ambient Temp Range
40°F – 110°F
Water Temp Range
40°F – 90°F
Water Pressure Range
20 – 80 PSI
Bin/Dispenser
Sold Separately
Warranty / Certifications
Warranty
3-year Parts & Labor; 5-year Parts & Labor on Evaporator; 5-year Parts & 1-year Labor on Compressor
