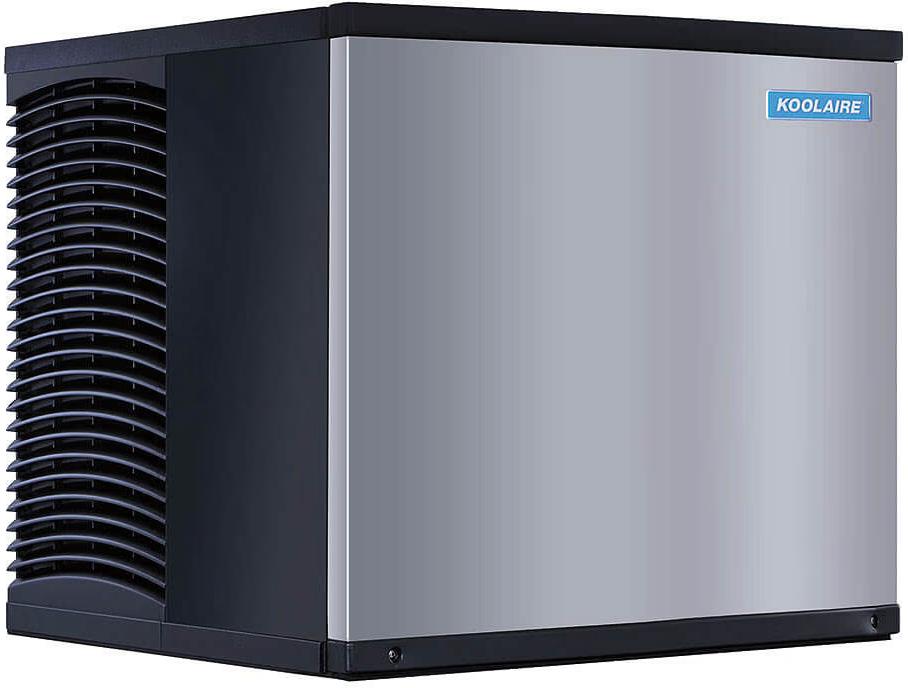

Koolaire - 22"W 120V Half Cube Air Cooled Ice Machine Head, 450 lbs/day - KYT0420A161
Model Number: MANC-KYT0420A161
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
120V
This product requires 120V.
NSF Listed
uIus
CE Certified
This product meets the health, safety, and environmental protection standards to be CE certified.
Energy Star Approved
Energy Star certified appliances are built to energy efficient standards, saving you money in the kitchen.
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
Description
The Koolaire KYT-0420A ice machine head delivers consistent, high-volume ice production, generating up to 450 lbs of half-cube ice daily in ideal conditions. Its air-cooled condenser reduces water usage, making it an efficient choice for foodservice operations focused on sustainability. The half-cube ice is ideal for beverage service, display cases, and bagging, as it packs tightly and cools efficiently. With a fingerprint-resistant stainless steel-like finish and a white plastic food zone, this unit is easy to clean and maintain. Tool-free removal of key internal components speeds up maintenance, and the water shield ensures sensitive parts stay protected during operation. A compatible ice bin is required for use and sold separately.
Key Features:
- Produces up to 450 lbs of half-cube ice daily in ideal conditions
- AHRI-certified production: 360 lbs per day
- Air-cooled condenser reduces water usage
- Half-cube ice size: 0.375 in x 1.125 in x 0.875 in
- White plastic food zone enhances visibility of buildup for easier cleaning
- Tool-free removal of pump, distribution tube, and water shield
- Fingerprint-resistant finish with stainless steel-like exterior
- Water shield protects internal components from splashes
- Ideal for beverages, food displays, and bagged ice
- Compatible 310-lb-capacity bin available (sold separately)
- Operating air temperature: 40°F – 110°F
- Water temperature range: 40°F – 90°F
- Water pressure: 20 – 80 PSI
Specifications
Dimensions
Width
22"
Depth
24"
Height
21.5"
Details
Weight
145 lbs
Daily Ice Production
450 lbs
AHRI Certified Production
360 lbs
Ice Type
Half Cube
Cube Size
0.375 in x 1.125 in x 0.875 in
Refrigerant
R410A
Compressor Type
Air Cooled
Voltage
115V
Amperage
10.3 A
Power
5.5 kW
Hertz
60Hz
Phase
1 Ph
Product Type
Ice Machine Head
Ambient Temp Range
40°F – 110°F
Water Temp Range
40°F – 90°F
Water Pressure Range
20 – 80 PSI
Bin/Dispenser
Sold Separately
Warranty / Certifications
Warranty
3-year Parts & Labor; 5-year Parts & Labor on Evaporator; 5-year Parts & 1-year Labor on Compressor
Reviews
Koolaire is shipped free across Canada on orders over $149. Built for operators who understand the importance of reliable ice production, Koolaire Ice Kube Machines are engineered to deliver clear, consistently shaped cubed ice with maximum cooling efficiency. Whether you're running a busy restaurant, bar, or catering service, Koolaire ensures dependable performance and high-quality ice when you need it most.
