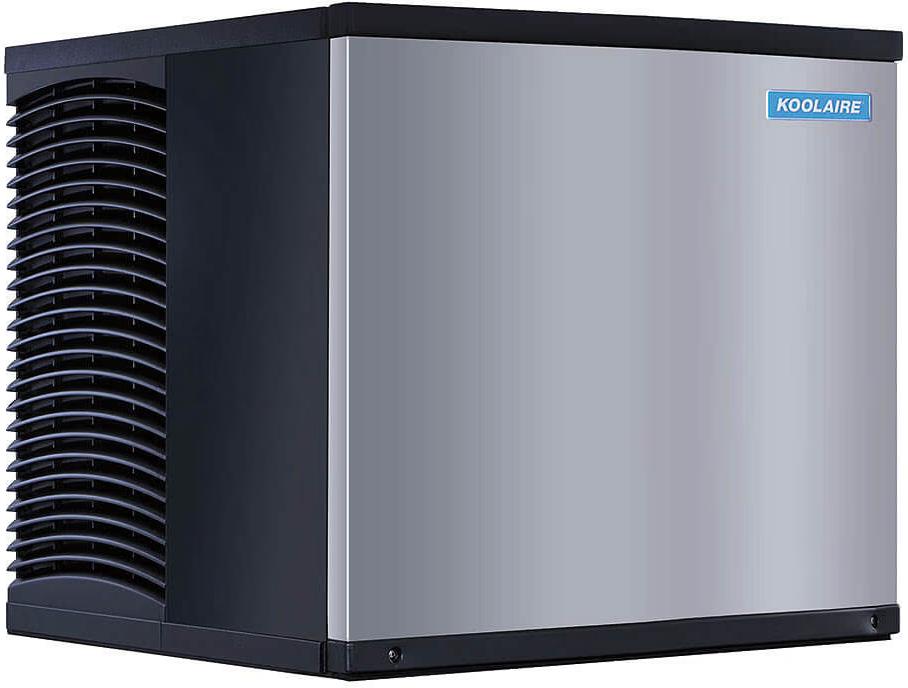

Koolaire - 22"W 120V Full Cube Air Cooled Ice Machine Head, 440 lbs/day - KDT0420A161
Model Number: MANC-KDT0420A161
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
120V
This product requires 120V.
NSF Listed
uIus
CE Certified
This product meets the health, safety, and environmental protection standards to be CE certified.
Energy Star Approved
Energy Star certified appliances are built to energy efficient standards, saving you money in the kitchen.
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
Description
Designed for commercial foodservice settings, the Koolaire KDT-0420A full cube ice machine head delivers up to 440 lbs of ice per day in optimal conditions. Ideal for high-volume beverage service, its full cubes melt slowly and are perfect for cocktails, sodas, water, and iced tea. The unit features an air-cooled condenser and R410A refrigerant for energy-efficient operation. Its durable, smudge-resistant exterior and removable internal parts make maintenance and cleaning simple. Compatible with ice bins and dispensers (sold separately), this 22-inch wide unit is a space-saving solution without sacrificing performance.
Key Features:
- Produces up to 440 lbs of full-cube ice per day under ideal conditions
- AHRI-certified production: 350 lbs/day
- Full-cube size: 0.875 in. x 0.875 in. x 0.875 in.
- Air-cooled condenser reduces water use and utility costs
- White plastic food zone components highlight debris for easy cleaning
- Interior components like the distribution tube, pump, floats, trough, and water shield are removable without tools
- Durable, fingerprint-resistant exterior finish
- Uses environmentally friendly R410A refrigerant
- Ice bin or dispenser must be purchased separately
- Ice deflector required when paired with a bin, not with a dispenser
- Operates in ambient temperatures from 40°F to 110°F
- Water temperature range: 40°F – 90°F
- Water pressure requirement: 20 – 80 PSI
- Top and side clearance requirement: 8 in; Rear clearance: 5 in
Specifications
Dimensions
Width
22"
Depth
24"
Height
21.5"
Details
Weight
143 lbs
Daily Ice Production
440 lbs
AHRI Certified Production
350 lbs
Ice Type
Full Cube
Cube Size
0.875 in x 0.875 in x 0.875 in
Refrigerant
R410A
Compressor Type
Air Cooled
Voltage
115V
Amperage
10.3 A
Power
5.8 kW
Hertz
60Hz
Phase
1 Ph
Product Type
Ice Machine Head
Ambient Temp Range
40°F – 110°F
Water Temp Range
40°F – 90°F
Water Pressure Range
20 – 80 PSI
Clearance Required
8 in (top/sides), 5 in (rear)
Bin/Dispenser
Sold Separately
Warranty / Certifications
Warranty
3-year Parts & Labor; 5-year Parts & Labor on Evaporator; 5-year Parts & 1-year Labor on Compressor
