Stoelting - 208-240V 3-Phase Water-Cooled Pressurized Double-Cylinder Soft Serve Floor Machine - U421-109I2-SH (Pre-Order Now, ETA 8-12 Weeks)
Model Number: AXOM-U421-109I2-SH
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
NSF Certified
This product has met requirements for safety, quality, sustainability & performance standards set by the NSF group.
UIUS
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
208V
240V
Description

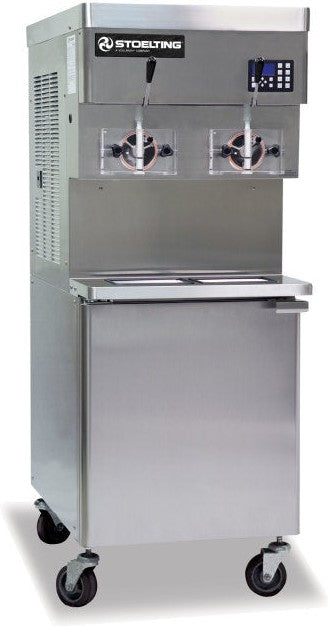

Two-flavor, floor standing, pressure-fed, soft serve/yogurt freezer with refrigerated cabinet. Delivering high-quality consistency from first cone to last, this hardworking floor standing unit easily handles peak demands and is built to last. Cleanup and maintenance are a breeze; the Intellitec2® control provides the ultimate in worry-free operation, and the Energy Conservation Mode (ECM) protects against over agitation.
Key Features:-
- Hard-working, floor standing unit handles peak demands, while providing years of dependable service.
- Production capacity: 19 gallons per hour each side.
- Separate refrigeration system keeps cabinet at a safe temperature for storing mix.
- Air / mix pumps deliver the precise amount of air and mix to the freezing cylinder.
- Intellitec2™ controls communicates with the operator for worry-free operation.
- Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product.
- Long-wearing parts offer lower preventative maintenance costs.
- Clear door provides excellent product visibility and merchandising appeal.
- Self-closing spigot eliminates waste and ensures precise portion control.
Specifications
Dimensions
Width
26.75"
Depth
39.75"
Height
67.75"
Details
Weight
760 Ib
Product Condition
New
Frequency
60HZ
Hardwired Connection
Yes
Maximum Overcurrent Protection Device (Per Barrel) || 30
Maximum Overcurrent Protection Device (Per Barrel) || 30
Minimum Circuit Ampacity (Per Barrel)
21.8
Phase
3
Plug Connection
No
Running Amps
18
Voltage
208-240
Refrigerant
R448A
Cabinet Capacity (GAL)
16
Cabinet Capacity (L)
60.6
Output Capacity per Hour per Freezing Cylinder (GAL)
19
Product Function || Soft Serve & Frozen Yogurt Floor Standing Machines
Product Function || Soft Serve & Frozen Yogurt Floor Standing Machines
Cooling
Water
Number of Drive Motors
2
Drive Motor (hp)
2
Number of Freezing Cylinders
2
Number of Freezing Cylinder Compressors
2
Freezing Cylinder Compressor (Btu/hr) || 19000
Freezing Cylinder Compressor (Btu/hr) || 19000
Cabinet Compressor (Btu/hr)
1300
Cabinet Refrigerant
R-134a
Plumbing Fittings || Units require 1/2" N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM per barrel. Ideal EWT of 50°-70°F. The machine requires 6" (15.2 cm) air space on all sides for the cabinet refrigeration system.
Plumbing Fittings || Units require 1/2" N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM per barrel. Ideal EWT of 50°-70°F. The machine requires 6" (15.2 cm) air space on all sides for the cabinet refrigeration system.
Air Flow || Units require 6" (15.2 cm) air space on all sides.
Air Flow || Units require 6" (15.2 cm) air space on all sides.
Freezing Cylinder Capacity (GAL)
1.33
Freezing Cylinder Capacity (L) || 5.03
Freezing Cylinder Capacity (L) || 5.03
