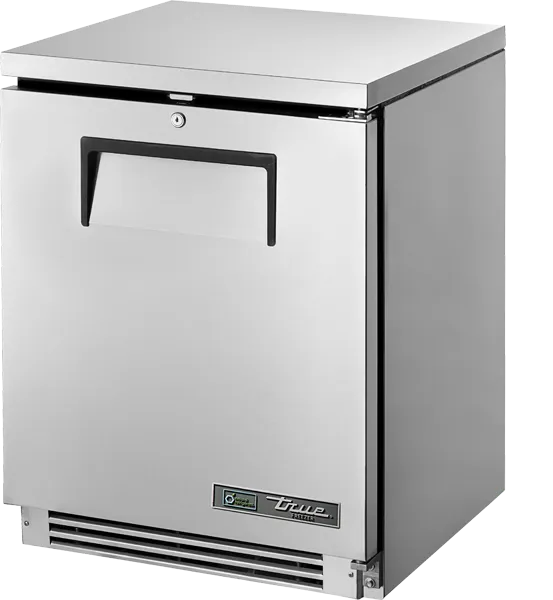

TRUE - 24" Undercounter Solid Door Freezer with Hydrocarbon Refrigerant with One Section - TUC-24F-HC

The TRUE 24" Undercounter Solid Door Freezer (model TUC-24F-HC) is a compact and efficient refrigeration solution designed for commercial kitchens with limited space. Built with high-quality materials and advanced refrigeration technology, this unit ensures optimal food preservation while maintaining energy efficiency.

Design

• True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).

• Energy efficient, factory balanced refrigeration system with guided airflow to provide uniform product temperatures.

• High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.

• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.

• Condensing unit access in back of cabinet, slides out for easy maintenance.

• Automatic defrost system time-initiated, time-terminated.

Cabinet Construction

• Exterior - stainless steel front, top and ends. Corrosion resistant GalFan coated steel back.

• Interior - attractive, clear coated aluminum liner. Stainless steel floor with coved corners.

• Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

Door

• Stainless steel exterior with clear coated aluminum liner to match cabinet interior.

• Door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.

• Positive seal self-closing door with 90° stay open feature. Door swings within cabinet dimensions.

• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Shelving

• Two (2) adjustable, heavy duty PVC coated wire shelves 20"L x 13–7/8"D (508 mm x 353 mm). Four (4) chrome plated shelf clips included per shelf.

• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

Model Features

• Evaporator is epoxy coated to eliminate the potential of corrosion.

• NSF/ANSI Standard 7 compliant for open food product.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

• NEMA-5-15R

Optional Features/accessories Upcharge And Lead Times May Apply.

• 220-240V/50-60Hz

• Heavy duty 16 gauge tops

• Exterior rectangular digital temperature display (factory installed)

• Left hinge available
