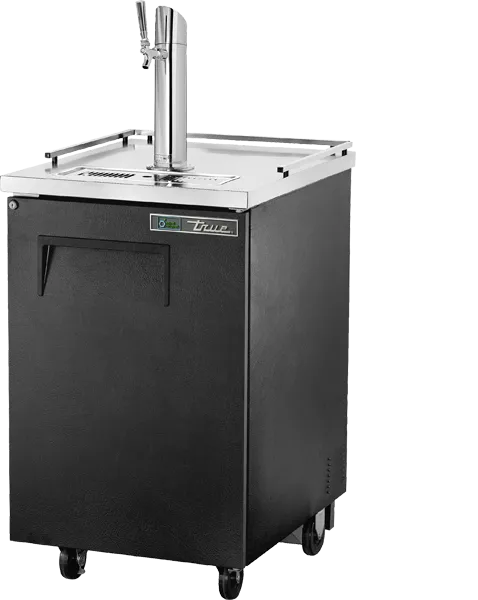

TRUE - 23.5" Black Solid Swing Door Direct Draw Beer Dispenser with Hydrocarbon Refrigerant - TDD-1-HC BLK

The TRUE 23.5" Black Solid Swing Door Direct Draw Beer Dispenser is a high-performance, energy-efficient solution for serving perfectly chilled draft beer. Designed for commercial and home bar use, this dispenser combines reliable cooling technology with a sleek, professional design, ensuring your beverages are always served at the ideal temperature.

Design

• True’s direct draw beer dispensers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).

• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).

• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.

• Condensing unit accessed from rear of unit for easy cleaning and maintenance.

Cabinet Construction

• Exterior - Black, powder coated cold-rolled steel with stainless steel countertop.

• Interior - Stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls.

• Door threshold protector prevents damage to cabinet from routine loading of product.

• Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

• One (1) 3" (77 mm) diameter stainless steel insulated beer column. Cold air is directed into beer column(s) to reduce foaming and maximize draft beer profits. Anodized aluminum glass rail.

Door

• Wear-resistant black powder coated exterior with heavy gauge galvanized steel liner.

• Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.

• Positive seal doors.

• Magnetic door gasket(s) of one piece construction, removable without tools for ease of cleaning.

• Door lock standard.

Model Features

• Evaporator is epoxy coated to eliminate the potential of corrosion.

• Designed to accommodate all types of beer kegs.

• Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

• 115/60/1 NEMA-5-15R

Optional Features/accessories Upcharge And Lead Times May Apply.

• Double headed draft column.

• Triple headed draft column.

• Two-way tapper manifold.

• Draft cap.
