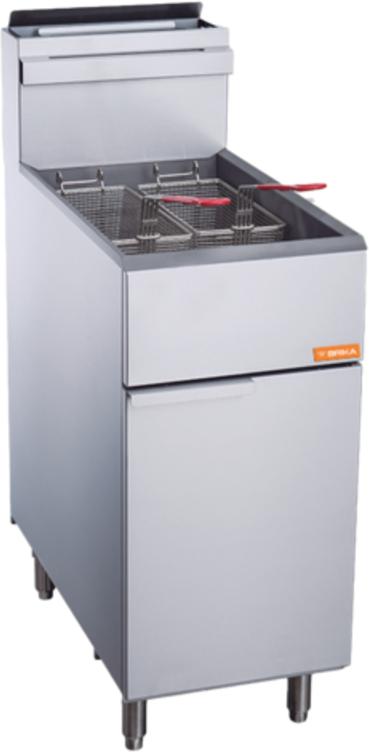

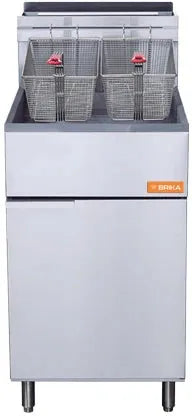

Brika - 70 lb Natural Gas Tube Fired Fryer, 150,000 BTU - BFR-70-NG
Model Number: DIST-BFR-70-NG
Description
The 70 lb frypot on this floor-standing natural gas fryer is the largest in the BFR line, holding roughly 36 L of oil over five tube-fired burners. Total input is 150,000 BTU/Hr, which is the kind of capacity a high-volume chicken or seafood operation needs when the fryer never gets a quiet minute. Frying area is 19.50" x 14.00", wider than the 40 lb and 50 lb models.
Each of the five burners is rated 30,000 BTU/Hr and fires through a tube that spreads flame across a large heat transfer area, holding the set point under continuous load. A durable temperature probe feeds the thermostat over a 200°F to 400°F range, and the millivolt safety control system keeps gas shutoff independent of any electrical connection. The forward-sloping bottom moves sediment into the large cold zone so oil lasts longer, and a 1.25" full port drain valve with pipe empties 70 lbs quickly at the end of the day. Overall size is 21.00" x 32.88" x 45.00" and net weight is 220 lbs.
Key Features:
- 70 lbs of oil (about 36 L) over a 19.50" x 14.00" frying area, the widest pot in the line
- Five tube burners at 30,000 BTU/Hr each, 150,000 BTU/Hr total for sustained output
- Durable temperature probe and a thermostat adjustable from 200°F to 400°F
- Millivolt safety control system operates without an electrical supply
- Large cold zone, forward-sloping bottom and a 1.25" high flow full port drain valve with pipe
- Stainless steel cabinet with two baskets and a double panel insulated door, CSA Sanitation listed, 1 year warranty and 5 years prorated on the tank
Specifications
Dimensions
Width
21.00"
Depth
32.88"
Height
45.00"
Cooking Width
19.50"
Cooking Depth
14.00"
Shipping Width
23.38"
Shipping Depth
35.38"
Shipping Height
37.63"
Details
Model
BFR-70-NG
Power Type
Natural Gas
Heating Source
Tube Fired
Total BTU
150,000 BTU/Hr
Number of Burners
5
Burner Rating
30,000 BTU/Hr per burner
Oil Capacity
70 lbs (~36 L)
Temperature Range
200°F - 400°F
Control System
Millivolt Safety Control System
Thermostat
Durable Temperature Probe
Drain Valve
1-1/4" High Flow Full Port Drain Valve with Pipe
Number of Baskets
2
Door
Double Panel Insulated
Cold Zone
Large Cold Zone with Forward-Sloping Bottom
Gas Inlet Size
3/4" NPT
Manifold Pressure (Natural Gas)
4" WC
Manifold Pressure (Propane)
10" WC
Construction Material
Stainless Steel
Net Weight
220 lbs
Shipping Weight
247 lbs
Clearance to Combustibles
17" minimum
Rear Clearance
4"
Product Condition
New
Warranty / Certifications
Warranty
1 Year
Tank Warranty
5 Year Prorated
Certification
CSA Sanitation
Reviews
Brika is shipped free across Canada on orders over $149. Brika restaurant equipment offers dependable, value-driven solutions for commercial kitchens, including combi ovens, gas ranges, fryers, broilers, griddles, and hot plates.
