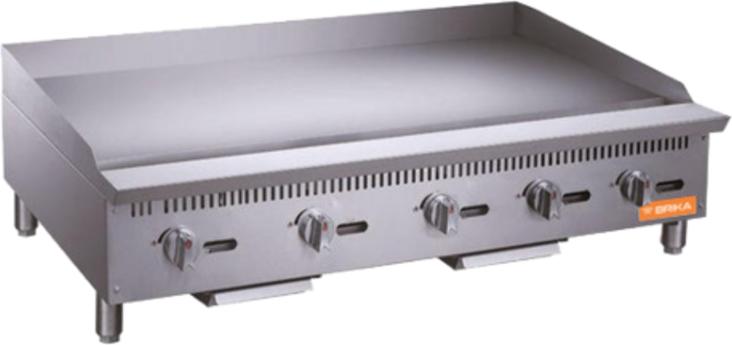

Brika - 60" Natural Gas Manual Griddle, 0.75" Steel Plate, 150,000 BTU - BMG-60
Model Number: DIST-BMG-60
Description
Five 12" sections make up the 60" plate on this manual gas griddle, each with a 30,000 BTU/Hr burner, for 150,000 BTU/Hr in total. That is five temperatures held at once across a 59.75" x 20.50" cooking surface. Institutional kitchens and large breakfast operations use the whole plate during service and shut sections down when the rush is over.
Plate thickness is 0.75" of polished steel, which is what keeps a surface this large from dropping off when it is loaded end to end. The cabinet measures 60.00" wide, 30.00" deep and 15.25" high, standing on adjustable stainless steel legs with non-skid feet. A full-length drip pan removes for cleaning and the stainless steel interior wipes down. Gas connects at 0.75" NPT, and the griddle converts between natural gas at 4" WC and propane at 10" WC.
Key Features:
- Five separately controlled zones, 150,000 BTU/Hr total
- 59.75" x 20.50" cooking surface on a 0.75" thick polished steel plate
- Stainless steel standby pilot in each 12" section for instant lighting
- Full-length removable drip pan, stainless steel exterior and interior
- 60.00" x 30.00" x 15.25" overall, on adjustable legs with non-skid feet
- CSA Sanitation certified with a one year warranty
Specifications
Dimensions
Width
60.00"
Depth
30.00"
Height
15.25"
Cooking Surface Width
59.75"
Cooking Surface Depth
20.50"
Griddle Plate Thickness
0.75"
Shipping Box Width
62.25"
Shipping Box Depth
32.63"
Shipping Box Height
18.88"
Details
Model
BMG-60
Power Type
Natural Gas or Propane
Heating Source
Gas
Total BTU
150,000 BTU/Hr
BTU per Burner
30,000 BTU/Hr
Number of Burners
5
Number of Controls
5
Controls
Independent manual control per 12" section
Ignition
Stainless steel standby pilot for instant ignition
Griddle Plate
Heavy-duty 3/4" thick polished steel plate
Gas Inlet Size
3/4" NPT
Gas Pressure
Natural Gas 4" W.C. / Propane 10" W.C.
Gas Nozzle
Natural Gas 34# / Propane 49#
Gas Conversion
Ships configured for natural gas; propane conversion kit included
Construction Material
Stainless steel exterior and interior
Drip Pan
Full-length seamless drip pan, removable
Legs
Adjustable stainless steel legs with non-skid feet
Product Condition
New
Warranty / Certifications
Warranty
1 Year
Certification
CSA Sanitation
