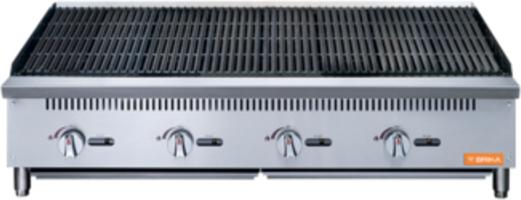

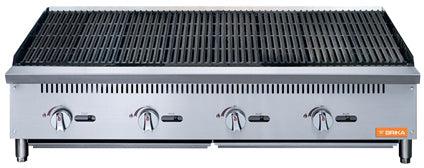

Brika - 48" Natural Gas Radiant Charbroiler, 140,000 BTU - BRB-48
Model Number: DIST-BRB-48
Description
Four separately fired 12" sections give this 48" radiant charbroiler 140,000 BTU/Hr and four working zones on one grate. Each section has a 35,000 BTU/Hr U-shaped burner, a standing pilot and a manual control valve of its own. Banquet kitchens and steakhouses that fire a full board at once are the operations that need this much width.
The 48" x 19.75" cooking surface sits over a stainless steel body, stainless on the inside as well, with double-walled sides and a front edge that stays cool to the touch. Grate height moves between two positions to suit thick cuts or lighter product, and the full-width crumb tray comes out for cleaning. Gas is a 0.75" NPT inlet at 4" WC on natural gas, with the propane kit shipped in the crate. The broiler weighs 230 lbs and needs 17" of clearance to combustibles, so check the counter and the hood line before it lands.
Key Features:
- Four heat zones across the full 48", 35,000 BTU/Hr each, 140,000 BTU/Hr total
- 48" x 19.75" of grate for large-batch searing, with two grate positions to work from
- Independent manual valve and standing pilot for every 12" section
- Stainless steel construction inside and out, double-walled sides, cool-to-the-touch front edge
- Full-width removable crumb tray and adjustable stainless steel legs for cleaning and levelling
- CSA Sanitation certified with a one year parts and labour warranty
Specifications
Dimensions
Width
48"
Depth
28.75"
Height
15.38"
Cooking Surface Width
48"
Cooking Surface Depth
19.75"
Crated Width
50.25"
Crated Depth
32.63"
Crated Height
20.50"
Clearance to Combustibles
17"
Rear Clearance
4"
Details
Model
BRB-48
Product Condition
New
Power Type
Natural Gas or Propane (LP conversion kit included)
Total BTU
140,000 BTU/Hr
Burners
4 x 35,000 BTU/Hr U-shaped burners
Number of Burners
4
Number of Controls
4
Heating Source
Radiant
Gas Inlet Size
0.75" NPT
Natural Gas Supply Pressure
4" WC
Natural Gas Nozzle
34#
Propane Supply Pressure
10" WC
Propane Nozzle
49#
Ignition
Standing Pilot (one pilot per 12" section)
Construction Material
Stainless Steel exterior and interior, double-walled sides
Grate Positions
2 position adjustable top grate
Legs
Adjustable stainless steel legs
Net Weight
230 lbs
Shipping Weight
269 lbs
Warranty / Certifications
Warranty
1 Year Parts & Labour
Certification
CSA Sanitation
