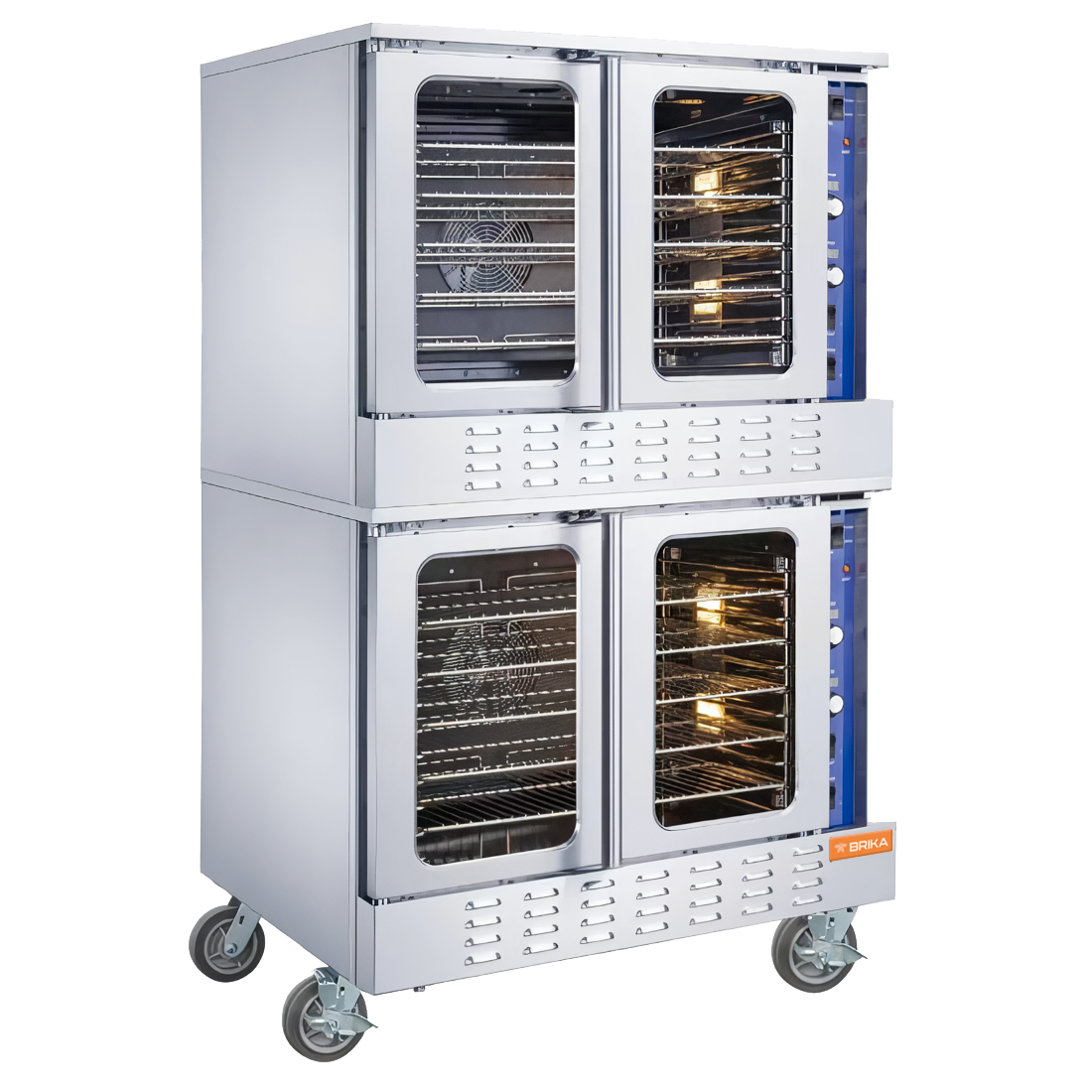

Brika - 38" Natural Gas Double Deck Convection Oven, 10 Full-Size Pans, 108,000 BTU - BCOS-2-NG
Model Number: DIST-BCOS-2-NG
Description
Ten full-size sheet pans, stacked two decks high, still inside a 38.00" wide footprint. Each deck runs its own three burners, its own two-speed fan and its own set of double-pane glass doors, so a bakery can proof and bake at different temperatures at the same time. Six burners at 18,000 BTU/hr each give 108,000 BTU/hr total.
Twenty adjustable shelf positions across the two cavities carry five pans per deck, on nickel-plated chrome racks, and both decks cover 175°F to 500°F independently. Electronic spark ignition with an automatic pilot and safety shut-off handles start-up, and each fan has an adjustable cool-down mode for the end of service. Stacked height is 68.50" on a 38.00" x 39.75" base, and net weight is 365 lb, 540 lb boxed. Clearances are 17.00" from combustibles and 4.00" at the rear, which matters when you are fitting two decks under an existing hood.
Key Features:
- Double the output without more floor space: 10 full-size pans in the same 38.00" x 39.75" footprint as the single deck
- Two decks run separately, each with three 18,000 BTU/hr burners, its own two-speed fan and its own glass doors
- 108,000 BTU/hr total input with a 175°F to 500°F range on each deck
- Twenty adjustable nickel-plated chrome shelf positions, five pans per deck
- Electronic spark ignition with automatic pilot and safety shut-off, plus adjustable fan cool-down
- 110V / 8.07 A controls, 0.75" NPT rear gas inlet, CSA Sanitation certified with a one-year parts and labour warranty
Specifications
Dimensions
Width
38"
Depth
39.75"
Height
68.50"
Shipping Width
42.70"
Shipping Depth
45.60"
Shipping Height
75.50"
Details
Model
BCOS-2-NG
Power Type
Natural Gas
Heating Source
Gas
Alternate Gas Configuration
Also available as LP / Propane
Total BTU
108,000 BTU/Hr
Number of Burners
6 (3 per deck)
Burner BTU
18,000 BTU/Hr per burner
Gas Inlet Size
3/4" NPT rear gas connection
Natural Gas Supply Pressure
4" WC
Propane Supply Pressure
10" WC
Voltage
110V
Amps
8.07 Amps
Capacity
10 trays (5 per deck)
Shelves
20 adjustable shelves
Number of Decks
2 (double-stacked)
Temperature Range
175°F to 500°F
Ignition
Electronic spark ignition with automatic pilot system and safety shut-off
Fan
Two-speed convection fan per deck with adjustable cool-down mode
Doors
Independent double-pane glass doors
Construction Material
Stainless steel exterior; double-pane glass doors; nickel-plated chrome shelves
Clearances
17" from combustibles; 4" at the rear
Product Condition
New
Net Weight
365 lb
Shipping Weight
540 lb
Warranty / Certifications
Warranty
1 Year Parts & Labour
Certification
CSA Sanitation
