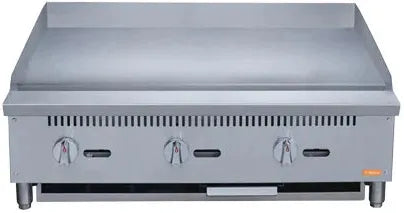

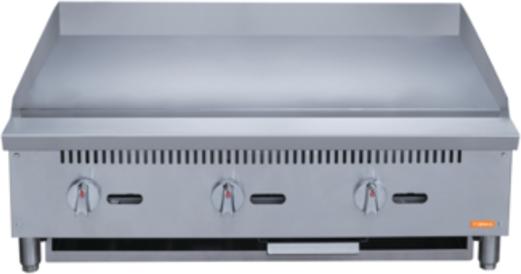

Brika - 36" Natural Gas Manual Griddle, 0.75" Steel Plate, 90,000 BTU - BMG-36
Model Number: DIST-BMG-36
Description
Three 12" sections across a 36" plate give this manual gas griddle 90,000 BTU/Hr and three temperatures at once. Every section gets a 30,000 BTU/Hr burner, a manual valve and a stainless steel standby pilot. Cafeterias and busy breakfast lines run the plate that way, with a hot searing zone and a lower holding zone side by side.
Under the 36.00" x 20.50" cooking area is 0.75" of polished steel, thick enough to hold temperature when a full load hits it at once. Cleanup happens at the drip pan, which runs the length of the unit and lifts out. Stainless steel forms the exterior and interior, and the adjustable legs stand on non-skid feet. Net weight is 245 lbs, gas is 0.75" NPT, and the griddle arrives configured for natural gas with an LP conversion kit.
Key Features:
- Three heat zones, one per 12" section, 90,000 BTU/Hr total
- 0.75" polished steel plate over a 36.00" x 20.50" surface for even heat under load
- Manual control valve and stainless steel standby pilot in every section
- Full-length removable drip pan and stainless steel interior
- 36.00" x 30.00" x 15.25" overall at 245 lbs net
- CSA Sanitation certified with a one year warranty
Specifications
Dimensions
Width
36.00"
Depth
30.00"
Height
15.25"
Cooking Surface Width
36.00"
Cooking Surface Depth
20.50"
Griddle Plate Thickness
0.75"
Shipping Box Width
38.25"
Shipping Box Depth
32.63"
Shipping Box Height
18.88"
Details
Model
BMG-36
Power Type
Natural Gas or Propane
Heating Source
Gas
Total BTU
90,000 BTU/Hr
BTU per Burner
30,000 BTU/Hr
Number of Burners
3
Number of Controls
3
Controls
Independent manual control per 12" section
Ignition
Stainless steel standby pilot for instant ignition
Griddle Plate
Heavy-duty 3/4" thick polished steel plate
Gas Inlet Size
3/4" NPT
Gas Pressure
Natural Gas 4" W.C. / Propane 10" W.C.
Gas Nozzle
Natural Gas 34# / Propane 49#
Gas Conversion
Ships configured for natural gas; propane conversion kit included
Construction Material
Stainless steel exterior and interior
Drip Pan
Full-length seamless drip pan, removable
Legs
Adjustable stainless steel legs with non-skid feet
Weight
245 Lbs
Product Condition
New
Shipping Weight
276 Lbs
Country of Origin
China
Warranty / Certifications
Warranty
1 Year
Certification
CSA Sanitation
