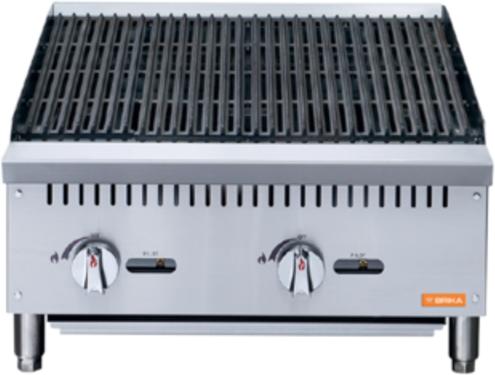

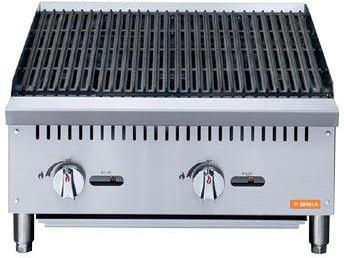

Brika - 24" Natural Gas Radiant Charbroiler, 70,000 BTU - BRB-24
Model Number: DIST-BRB-24
Description
This 24" radiant charbroiler carries two U-shaped burners rated 35,000 BTU/Hr each, 70,000 BTU/Hr in total, under a 24" x 19.75" grate. Each burner serves its own 12" section with a separate manual valve and standing pilot, so one half can sear while the other half holds. It suits a pub kitchen or a food truck that needs real searing heat on a counter instead of a full range bay.
The cabinet is stainless steel inside and out, with double-walled sides and a front edge that stays cool to the touch. The top grate sets in two positions, closer to the flame for searing or further off for slower cooking, and the full-width crumb tray pulls out at the end of service. Gas comes in through a 0.75" NPT connection, and the unit ships set for natural gas at 4" WC with the propane conversion kit included. At 132 lbs on adjustable stainless steel legs it sits level and stays put, and it wants 17" of clearance to combustibles with 4" at the rear.
Key Features:
- Two independent 12" zones, each fed by a 35,000 BTU/Hr U-shaped burner for 70,000 BTU/Hr total
- Sear hard or cook slower using the two-position top grate over the 24" x 19.75" cooking surface
- Immediate lighting from a standing pilot in every 12" section, with one manual control valve per zone
- Fast end-of-shift cleanup with a full-width removable crumb tray and a stainless steel interior
- Cooler to work beside, thanks to double-walled sides and a cool-to-the-touch stainless front edge
- CSA Sanitation certified and covered by a 1 year limited manufacturer warranty
Specifications
Dimensions
Width
24"
Depth
28.75"
Height
15.38"
Cooking Surface Width
24"
Cooking Surface Depth
19.75"
Crated Width
26.13"
Crated Depth
32.63"
Crated Height
20.50"
Clearance to Combustibles
17"
Rear Clearance
4"
Details
Model
BRB-24
Product Condition
New
Power Type
Natural Gas or Propane (LP conversion kit included)
Total BTU
70,000 BTU/Hr
Burners
2 x 35,000 BTU/Hr U-shaped burners
Number of Burners
2
Number of Controls
2
Heating Source
Radiant
Gas Inlet Size
0.75" NPT
Natural Gas Supply Pressure
4" WC
Natural Gas Nozzle
34#
Propane Supply Pressure
10" WC
Propane Nozzle
49#
Ignition
Standing Pilot (one pilot per 12" section)
Construction Material
Stainless Steel exterior and interior, double-walled sides
Grate Positions
2 position adjustable top grate
Legs
Adjustable stainless steel legs
Net Weight
132 lbs
Shipping Weight
154 lbs
Warranty / Certifications
Warranty
1 Year Limited Manufacturer Warranty
Certification
CSA Sanitation
