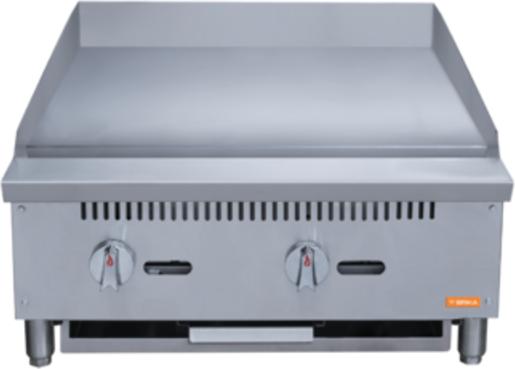

Brika - 24" Natural Gas Manual Griddle, 0.75" Steel Plate, 60,000 BTU - BMG-24
Model Number: DIST-BMG-24
Description
Two 30,000 BTU/Hr burners sit under the 0.75" polished steel plate of this 24" manual gas griddle, one per 12" section, for 60,000 BTU/Hr in total. Each section has its own valve and its own standby pilot, so eggs can hold at one temperature while burgers sear at another. Diners and breakfast houses move to this width when a 12" plate stops keeping up.
The plate is why the griddle holds temperature under load: 0.75" of polished steel across a 24.00" x 20.50" surface takes a lot to pull down. Grease runs into a full-length drip pan that lifts out at close. The cabinet is stainless steel inside and out on adjustable legs with non-skid feet, and net weight is 176 lbs. Gas is 0.75" NPT, set for natural gas on arrival with the LP kit in the carton.
Key Features:
- Two independent temperature zones, 30,000 BTU/Hr each, 60,000 BTU/Hr total
- 0.75" thick polished steel plate over a 24.00" x 20.50" cooking surface
- Stainless steel standby pilot in each section for immediate ignition
- Full-length removable drip pan and a stainless steel interior for daily cleaning
- 24.00" x 30.00" x 15.25" overall at 176 lbs net, on adjustable non-skid legs
- CSA Sanitation certified, one year warranty, propane conversion kit included
Specifications
Dimensions
Width
24.00"
Depth
30.00"
Height
15.25"
Cooking Surface Width
24.00"
Cooking Surface Depth
20.50"
Griddle Plate Thickness
0.75"
Shipping Box Width
26.13"
Shipping Box Depth
32.63"
Shipping Box Height
18.88"
Details
Model
BMG-24
Power Type
Natural Gas or Propane
Heating Source
Gas
Total BTU
60,000 BTU/Hr
BTU per Burner
30,000 BTU/Hr
Number of Burners
2
Number of Controls
2
Controls
Independent manual control per 12" section
Ignition
Stainless steel standby pilot for instant ignition
Griddle Plate
Heavy-duty 3/4" thick polished steel plate
Gas Inlet Size
3/4" NPT
Gas Pressure
Natural Gas 4" W.C. / Propane 10" W.C.
Gas Nozzle
Natural Gas 34# / Propane 49#
Gas Conversion
Ships configured for natural gas; propane conversion kit included
Construction Material
Stainless steel exterior and interior
Drip Pan
Full-length seamless drip pan, removable
Legs
Adjustable stainless steel legs with non-skid feet
Weight
176 Lbs
Product Condition
New
Shipping Weight
198 Lbs
Country of Origin
China
Warranty / Certifications
Warranty
1 Year
Certification
CSA Sanitation
